The Key Components of BIM Modeling Explained

BIM modeling reshapes how construction projects are designed, built, and managed. It bridges the communication gap between design and delivery, giving teams a clearer view of the project at every phase. With rising demands for faster timelines and reduced waste, traditional methods often fall short. BIM turns data, geometry, and collaboration into a single, live model that keeps everyone aligned from concept to closeout.

What is BIM Modeling in Construction Projects?

BIM modeling, or Building Information Modeling, is a digital process used to plan, design, build, and maintain infrastructure. Unlike simple 3D drawing tools, BIM links visual models to detailed data like materials, timelines, costs, and maintenance. Every object in the model holds real-world information and interacts with others intelligently. That integration allows faster decision-making, fewer errors, and better project outcomes.

How BIM Differs from Traditional CAD Workflows

Traditional CAD focuses on line-based drawings, while BIM builds intelligent, data-rich models. A BIM model shows a structure and how each part functions and connects to other systems. For example, a beam knows its dimensions, material type, and supplier data. When design changes occur, BIM updates every relevant area automatically. It reduces rework, eliminates duplicate efforts, and keeps teams in sync. BIM modeling replaces fragmented coordination with real-time collaboration.

Why Lifecycle Thinking Sets BIM Apart

BIM supports a building's full lifecycle from design through maintenance. Facility managers can reference the BIM model for upgrades or repairs years after construction. Every component's data, including warranties and specs, remains accessible in one place. This continuity ensures fewer surprises during retrofits or inspections. BIM becomes a digital asset that supports long-term planning and performance. Lifecycle modeling minimizes gaps between design intent and real-world operations.

How BIM Modeling Improves Team Coordination

BIM enables cross-disciplinary collaboration in a shared digital space. Designers, engineers, and contractors can edit, comment, and review the same model simultaneously. Changes update automatically across sheets, reducing conflicting information. Everyone works from the latest version without emailing updated files back and forth. Model-based communication reduces confusion and helps resolve issues faster. This smooth workflow is key in fast-paced projects with many moving parts.

Key BIM Modeling Components Explained

Every BIM model includes core components that keep it organized, accurate, and scalable. These elements provide structure, automate tasks, and ensure clarity across disciplines. From project setup to model outputs, each component drives efficiency. Understanding them helps teams build smarter and faster.

Project Metadata and Configuration Details

Project metadata forms the foundation of any BIM model. It includes site location, project phase, applicable building codes, and energy zones. These inputs inform design parameters and help with code compliance. Setting these accurately avoids regulatory delays and ensures the model reflects real-world conditions. BIM software uses metadata to automate energy modeling, zoning compliance, and climate-based performance. Accurate setup saves hours of corrections later.

Grids, Levels, and Reference Frameworks

Grids and levels guide vertical and horizontal alignment in the model. Every wall, floor, and beam is placed relative to these systems. Reference planes help define geometry and establish precision in complex areas. Without this structure, the model becomes difficult to navigate and prone to misalignments. These frameworks also aid in generating sections and elevations. Their consistency supports better coordination and site layout accuracy.

Views, Sheets, and Collaboration Worksets

BIM modeling allows teams to create views or specific snapshots of the model for various trades. Each view can highlight structural, mechanical, or electrical components without altering the master file. Sheets organize these views into standardized drawing sets for print or digital review. Worksets divide the model for team collaboration, preventing accidental overwrites. These tools enable parallel workflows without conflict. Effective use of views and sheets improves communication and documentation accuracy.

Parametric Objects That Adapt Automatically

Objects in BIM aren't static; they are rule-based components called parametric families. A door knows its type, swing direction, material, and manufacturer. Change one attribute, and it updates everywhere in the model. This automation prevents data errors and reduces time spent on revisions. Objects behave predictably, improving model accuracy. Parametric tools speed up design tasks and allow design alternatives without duplication.

Annotations, Tags, and Smart Schedules

Annotations and tags add context to every model component. For example, a light fixture may carry installation notes, part numbers, and energy ratings. Tags can be updated globally if specs change, saving time. Schedules extract data automatically, like door counts or finish lists, and reflect real-time changes. These tools streamline documentation and reduce manual updates. Smart tags and schedules close the loop between design and deliverables.

BIM Dimensions and Maturity Levels Defined

BIM modeling operates across maturity levels and data dimensions that define how models evolve. Levels reflect team collaboration and information sharing standards. Dimensions represent the depth of information within the model, from 3D visuals to 7D facility data. Each progression offers more control and insight.

BIM Levels 0 Through 3: The Progress Path

Level 0 is unmanaged 2D drafting without collaboration. At Level 1, teams work with standard CAD files and share PDF outputs. Level 2 supports data-rich 3D models with standard data formats and coordination. Level 3 enables live collaboration in cloud-based environments with full data integration. Most companies aim for Level 2 before advancing further. Reaching Level 3 improves accuracy and dramatically reduces rework.

BIM Dimensions: From 3D Modeling to 7D Data

3D BIM shows spatial relationships and building form. 4D adds time, enabling construction sequencing and scheduling simulations. 5D introduces cost estimates linked to model changes. 6D provides energy performance and sustainability data. 7D supports asset tracking, operations, and maintenance. Each dimension builds on the last to improve control and long-term value.

BIM Tools That Improve Construction Collaboration

BIM thrives when powered by the right digital tools. These platforms enable cloud collaboration, change tracking, and remote access. Construction teams can view and comment on live models across devices. That visibility prevents missteps and helps teams respond faster.

Cloud Hosting and Real-Time Model Access

Cloud-based platforms like Autodesk Construction Cloud host BIM files securely online. Teams can view, update, and share models without downloading massive files. Version control tracks every change for full accountability. Remote stakeholders gain equal access to project updates. Mobile access on tablets or phones helps field teams view the latest data. Cloud hosting turns BIM into a live platform for more innovative collaboration.

Clash Detection Before Construction Begins

Clash detection identifies conflicts between systems like ducts, beams, and piping. BIM tools scan for these overlaps before materials reach the site, avoiding costly changes and schedule delays. Coordination reviews help resolve issues between trades ahead of time. These insights improve constructability and reduce disputes. Proactive clash detection keeps the project moving forward.

Built-In Commenting and Role Assignments

Modern BIM platforms let users tag components with comments, questions, or issues. Tasks with deadlines and responsibilities can be assigned directly in the model, reducing back-and-forth emails and meetings. Everything stays tied to the object it affects, creating a digital trail. This system keeps everyone informed and accountable. Integrated tasking is key for fast-paced delivery.

Deliverables from BIM That Drive Real Value

BIM doesn't just create drawings—it produces data-rich deliverables. These outputs inform estimating, construction, handover, and maintenance. Because the data is linked to geometry, it stays updated with every change. That real-time accuracy makes a difference at every project phase.

Quantities, Cost Reports, and Estimating

Quantity takeoffs pull directly from the model, reducing manual errors. These are tied to components like walls, windows, or finishes. Estimators can update costs quickly if designs shift. It allows for real-time budget analysis and better value engineering. Cost certainty improves when numbers come straight from the model. BIM shortens bid timelines and strengthens contractor confidence.

As-Built Models and Facility Management Data

As-built BIM models reflect the final installed conditions of a project. These include serial numbers, manuals, warranties, and maintenance instructions. Facility teams use these models to track equipment status and plan servicing. That saves time and avoids expensive mistakes post-occupancy. Owners gain a long-term asset they can reference for upgrades or retrofits. BIM handover supports smooth operations long after construction ends.

Why Delaying BIM Modeling Costs More

Avoiding BIM adoption increases long-term costs, confusion, and project risks. Manual coordination, repeated errors, and disconnected workflows waste time and money. Teams that resist BIM often struggle with poor visibility and inconsistent communication. That delay opens the door to missed opportunities and competitive disadvantages.

Workflow Breakdowns Without Centralized Models

Without BIM, each team works in isolated files that rarely align, which leads to overlapping tasks, outdated references, and miscommunication—teams waste days fixing errors that could have been prevented with shared models. Coordination becomes reactive instead of proactive. Errors surface late in the process, costing time and resources. BIM centralizes information and streamlines collaboration.

Missed Long-Term Gains in Asset Management

A project without BIM loses out on long-term efficiencies. Facilities often lack access to complete records, making maintenance reactive and inefficient. BIM models contain data about upgrades, system replacements, and lifecycle planning. Losing that continuity leads to higher costs down the road. Owners need structured data to manage significant, complex assets. BIM provides continuity with minimal extra effort.

Invest in BIM Modeling Before Losing Ground

Construction is evolving quickly, and companies with the best results already use BIM. Every project you run without it costs more in errors, delays, and missed insight. Waiting only widens the gap between where you are and where your competitors are heading. Start building your BIM strategy today. A reliable BIM services provider can help streamline your workflow, improve coordination, and keep your projects on track. It's a tech upgrade and a brilliant way to run your projects and protect your margins.

Get ahead of project delays and cost surprises. The LNE Surveys blog shows how BIM modeling makes precision part of every plan.

3D Scanning vs Traditional Surveying: Which Is Better for Existing Buildings?

In the world of building documentation and renovation, precision is everything—especially when working with existing structures that have aged, shifted, or been modified over time. For decades, traditional surveying was the gold standard for measuring buildings. But with the emergence of 3D Scanning technologies, the surveying industry is undergoing a major transformation. So, when it comes to analyzing and planning improvements for existing buildings, is 3D Scanning the superior choice—or does traditional surveying still have its place? Let's explore the two methods in depth.

Understanding the Basics of 3D Scanning in Building Surveys

3D Scanning uses laser-based or photogrammetric technology to create a digital, three-dimensional representation of a structure. The scanner rapidly collects millions of data points, producing what is known as a "point cloud." This cloud is then processed to generate accurate 3D models of architectural features, including floor plans, elevations, and MEP systems. For existing buildings with undocumented changes or hard-to-access areas, 3D Scanning can unveil structural truths that tape measures and total stations may miss.

Traditional Surveying Methods and Their Role in Construction

Traditional surveying relies on manual instruments like total stations, theodolites, measuring tapes, and GPS systems. Surveyors use these tools to capture angles, distances, and elevation data through careful calculations. Although slower and more labor-intensive than modern alternatives, traditional surveying is a tried-and-true method that continues to serve infrastructure and civil engineering projects effectively. It remains beneficial in open outdoor environments or where precise control points are required.

Accuracy Levels of 3D Scanning vs Traditional Surveying

When it comes to precision, both 3D Scanning and traditional surveying can produce highly accurate results—if applied correctly. However, 3D Scanning shines in its ability to capture an entire scene at once, without relying on manual placement of points. The resulting data minimizes human error and eliminates missed measurements. In contrast, traditional surveying captures only what is manually marked or measured, meaning any oversight can lead to costly rework or design revisions.

Tolerance Ranges and Human Error

3D Scanning systems offer sub-millimeter accuracy in some models, which can be crucial for mechanical retrofits or structural modifications. Traditional surveying depends on the surveyor's technique, and small errors can accumulate and compound across large areas.

Surface Complexity and Environmental Challenges

Curved or irregular surfaces are captured effortlessly by 3D Scanners, while traditional methods often struggle with anything that isn't flat or linear. Shadowing, clutter, and interior obstacles further complicate manual surveying tasks.

3D Scanning Efficiency in Capturing Complex Interiors

For existing buildings—especially those with complex layouts, narrow crawlspaces, or layered MEP systems—3D Scanning provides unmatched efficiency. The process captures every visible surface in a single sweep, allowing technicians to quickly document the current state of the building with minimal disruption. In contrast, traditional surveying might require repeated visits, physical disassembly, or estimations based on inaccessible spaces.

Data Output Formats From 3D Scanning and Their Advantages

The output of 3D Scanning is not just a static map or drawing—it's a living digital model. From point clouds, professionals can extract 2D floor plans, cross-sections, and even detailed 3D BIM models. This digital versatility empowers architects, engineers, and contractors to collaborate using shared files and simulation environments. Traditional surveys, by comparison, typically produce static CAD drawings that require manual input for revisions or simulations.

BIM Integration for Project Planning

3D scan data can be imported directly into BIM platforms, enabling clash detection, space planning, and coordination with mechanical systems. This allows for more accurate project planning in real-world conditions.

Real-Time Collaboration With Stakeholders

Digital scans enable multiple teams—often working remotely—to explore the model in real-time. This accelerates decision-making and reduces the need for return site visits.

Time and Labor Considerations in 3D Scanning Workflows

Speed is one of the most significant benefits of 3D Scanning. While a traditional survey of a commercial building may take several days or weeks, depending on its size and complexity, a 3D Scanning crew can complete fieldwork in a fraction of that time. The back-end data processing is also faster thanks to automated workflows and powerful modeling software. This time savings translates to faster project launches and fewer project delays.

Safety and Accessibility Factors in Existing Buildings

One of the most underappreciated advantages of 3D Scanning is its ability to reduce the physical risks involved in field measurements. In older buildings, where floors may be unstable or spaces difficult to access, sending a technician in with a tape measure poses real safety concerns. Scanning allows teams to maintain a safe distance while capturing detailed information. Traditional surveying often places surveyors in precarious positions, especially in attic spaces, mechanical rooms, or on rooftops.

Mitigating Hazards Through Remote Capture

Because 3D Scanners can collect data from a distance or be mounted to drones or robotic systems, the need to enter unsafe zones is drastically reduced. This enhances worker safety and compliance.

Avoiding Manual Re-Entry to Hazard Zones

Since scans can be referenced repeatedly, teams do not need to re-enter dangerous areas to double-check dimensions or take additional measurements. The initial scan becomes the definitive record.

Cost Comparison: 3D Scanning vs Traditional Surveying

Cost is always an important consideration when choosing a survey method. While 3D Scanning equipment and software have a higher upfront cost, the long-term savings from reduced labor, fewer errors, and faster turnarounds often make it a smarter investment for existing buildings. Traditional surveying may have lower initial costs but can become more expensive due to extended labor hours, rework, or incomplete data.

Project Types That Benefit Most From 3D Scanning

Certain types of projects almost always benefit from using 3D Scanning over traditional methods. These include historic preservation efforts, renovations of occupied buildings, and adaptive reuse designs. In all these cases, the need for precise as-is documentation makes 3D Scanning the preferred method. It is also advantageous when retrofitting modern systems—like HVAC or electrical upgrades—into older spaces that lack updated records.

Adaptive Reuse and Architectural Renovations

Older buildings rarely align with their original drawings, making 3D Scanning an ideal tool for uncovering undocumented modifications or additions. This eliminates surprises during construction.

Mechanical and MEP Coordination

Engineers can use scans to determine exactly where to route pipes, ducts, or wiring, thereby avoiding the need for demolition of walls or ceilings during installation. This minimizes disruption and cost.

Limitations and Learning Curves With 3D Scanning Tools

Despite its advantages, 3D Scanning does have a learning curve. Technicians must be trained not only in operating the scanner but also in interpreting scan data and using modeling software. There is also the risk of data overload; scan files are enormous and require powerful computing tools to process them effectively. Additionally, while scanners can't see through walls or detect hidden systems, some clients may incorrectly assume they can.

Traditional Surveying's Place in Large-Scale Site Development

While 3D Scanning dominates in indoor and complex structural environments, traditional surveying is still relevant—particularly for large-scale site development. Open land surveys, elevation grading, and boundary staking are often better suited to GPS-based or total station methods. These tools remain essential for establishing control points or legal boundaries that Scanning cannot determine on its own.

The Human Element in 3D Scanning and Surveying Accuracy

Technology can streamline the measurement process, but expertise still matters. A highly trained traditional surveyor can often catch anomalies or errors that machines might not interpret correctly. Similarly, a 3D scan is only as good as the technician who sets up and processes the data. Knowing where to place the scanner, how to control for light or reflective surfaces, and how to clean up noisy data are skills that come with experience.

The Role of 3D Scanning in Ongoing Facility Management

Once construction or renovation is complete, 3D Scanning continues to deliver value by supporting facility management and building operations. Digital scans serve as an exact reference for locating systems, tracking structural changes over time, and planning future improvements without having to guess what's behind walls or ceilings. Facilities teams can access these models remotely to diagnose problems, coordinate upgrades, or verify vendor installations. This creates a permanent as-built record that evolves with the building, reducing the likelihood of redundant work or miscommunication. Traditional surveying rarely offers this level of long-term insight. In this way, 3D Scanning transitions from a one-time measurement tool into an essential part of a building's lifecycle strategy.

Future Outlook for 3D Scanning in the Survey Industry

The future of building surveys clearly leans toward automation and digital integration, and 3D Scanning is at the heart of that evolution. As software becomes more user-friendly and hardware more affordable, the barriers to entry are shrinking. In the coming years, we can expect 3D Scanning to become the standard in most architectural and engineering workflows, especially for renovations, retrofits, and facility management applications.

Making the Right Choice for Your Existing Building Project

Choosing between 3D Scanning and traditional surveying depends on several factors: the condition of the building, the level of detail required, budget constraints, and the project timeline. For most existing building documentation projects where accuracy and completeness are key, 3D Scanning offers clear advantages. However, traditional surveying remains vital for certain field conditions and legal documentation needs. The best results often come from using both in combination—leveraging the speed and accuracy of 3D scans with the foundational framework of conventional control points.

3D Scanning vs Traditional Surveying: Not A Zero-Sum Game

The choice between 3D Scanning and traditional surveying is no longer a binary one. As technology evolves, the industry is learning how to blend the strengths of both methods. For most existing building surveys, 3D Scanning provides a faster, safer, and more comprehensive path to informed decision-making. However, traditional techniques still hold value where legal boundaries and outdoor environments are concerned. Ultimately, the best solution depends on your project goals—and the expertise behind the tools you use. Check out our LNE Surveys blog to learn more about different scanning methods and how they can help your next commercial development project.

The Evolution of BIM: From 2D Blueprints to 3D Modeling and Beyond

The architecture, engineering, and construction (AEC) industries have undergone a technological transformation over the past several decades, with one of the most defining advancements being Building Information Modeling, or BIM. Once rooted in flat, paper-based plans, today's design workflows have become deeply immersive, data-rich, and collaborative thanks to BIM. Understanding its evolution—from rudimentary 2D blueprints to the powerful 3D, 4D, and even 7D modeling used today—offers insight into how the built environment is designed, analyzed, and managed in the modern era.

Early Design Methods and the Limitations of 2D Drafting

Before the advent of digital tools, architectural and engineering drawings were completed by hand on paper or mylar sheets. These blueprints were labor-intensive to create and prone to human error, requiring meticulous manual drafting to depict plans, sections, and elevations. Any updates meant redrawing entire sections, and coordination between disciplines often led to inconsistencies across drawing sets. The limitations of 2D drafting were clear: static visuals, a lack of dimensional intelligence, and minimal collaboration across project teams. Engineers and architects would frequently work in isolation, relying heavily on physical documents, phone calls, and meetings to resolve design issues. As buildings grew in complexity, so did the risk of coordination problems, budget overruns, and delayed schedules. This set the stage for a more integrated approach to design.

The First Wave of CAD Technology

The emergence of Computer-Aided Design (CAD) in the 1960s and 70s marked a revolutionary shift in how design professionals approached their work. CAD enabled more precise and efficient drafting, eliminating the manual burden of traditional methods. Instead of ink and paper, designers could use a digital interface to produce detailed 2D plans with greater speed and accuracy. Initially, CAD drafting still focused on 2D drawings and mimicked traditional drafting techniques. However, it offered significant improvements in productivity, storage, and revision control. Changes could be made without starting over, and standard libraries of components accelerated drawing processes. Despite its benefits, early CAD tools did not offer intelligent relationships between elements, and coordination remained a challenge.

BIM Emerges as a Paradigm Shift in Design

The term BIM started gaining traction in the 1990s, although the concepts behind it had been developing for decades. BIM introduced a new philosophy: buildings could be modeled digitally as holistic systems rather than collections of disconnected drawings. Every wall, door, pipe, or beam in a BIM model contained embedded data, creating an innovative, interconnected environment. Early BIM software, like Revit and ArchiCAD, revolutionized the creation and representation of building components. Instead of drawing a rectangle to represent a wall, users could place a wall object with height, width, materials, and structural properties. These object-based components added intelligence to the model, allowing changes to ripple through associated elements automatically. This automation saved time and drastically reduced inconsistencies in drawings. As BIM matured, the need for interoperability between different platforms became apparent. Industry standards like IFC (Industry Foundation Classes) and COBie helped facilitate data exchange across software ecosystems. These standards made it easier for architects, engineers, contractors, and owners to share models without losing critical data during the transfer process.

The Rise of 3D Modeling in Mainstream BIM Workflows

Three-dimensional modeling has become the backbone of modern BIM practices, providing spatial awareness and visual clarity far beyond what 2D drawings can offer. Designers can now walk clients through virtual tours before they are built, identifying potential issues with geometry, space usage, and access.

Clash Detection and Constructability Analysis

One of the most powerful features of 3D BIM is clash detection, which identifies conflicts between architectural, structural, and MEP systems before they become physical problems on site.

Enhanced Design Coordination

Using 3D models, teams can collaborate in real-time, identifying potential design issues and resolving them early. This reduces delays and change orders during the construction process.

Integrating Time With 4D BIM

4D BIM incorporates the dimension of time into the 3D model, allowing teams to visualize how a construction project will progress over time. By linking model components to a project schedule, planners can simulate sequences of work, identify schedule risks, and optimize workflows.

Improving Construction Phasing

4D BIM helps contractors plan phased installations by visualizing exactly when and where resources will be required. This leads to more efficient material delivery and manpower allocation.

Communicating With Stakeholders

Animated construction timelines help convey project plans to clients and the public. Visual sequencing facilitates a clearer understanding of how the building will evolve.

Extending BIM to 5D Cost Modeling

The fifth dimension of BIM involves cost—every component in the model can be associated with pricing information, allowing for dynamic cost estimation and budget tracking. Known as 5D BIM, this functionality empowers estimators and project managers to make data-driven financial decisions.

Real-Time Budget Adjustments

With 5D BIM, changes to design elements automatically reflect in the cost model. This ensures that estimates remain accurate and aligned with the project's financial objectives.

Supporting Value Engineering

Cost modeling enables teams to compare design options not only on aesthetics and performance, but also on their economic impact. This facilitates value engineering without guesswork.

6D BIM and the Integration of Sustainability

Sustainability is a growing concern in the built environment, and 6D BIM adds an environmental layer to modeling. This dimension includes data related to energy use, carbon emissions, lifecycle assessments, and material performance. Designers can simulate a building's energy consumption before it's constructed, adjusting parameters to meet green building standards.

Energy Modeling and Analysis

Using BIM for energy modeling allows teams to run simulations based on building orientation, glazing, HVAC systems, and insulation levels. This helps achieve energy-efficient designs from the start.

Tracking Lifecycle Impact

Lifecycle assessments are easier when material specifications and durability data are stored in the BIM model. Teams can plan for long-term sustainability and maintenance.

7D BIM and Facilities Management

Once a building is complete, the model doesn't retire. 7D BIM takes the data-rich environment beyond construction and into facilities management. Building owners and operators can use BIM to track assets, plan maintenance, manage warranties, and support renovations over time.

Linking BIM to CMMS Platforms

BIM models can integrate with Computerized Maintenance Management Systems (CMMS), allowing work orders and inspections to be tied back to specific building components.

Streamlining Building Operations

Asset tracking and spatial awareness make everyday facilities management more intuitive and efficient. Teams can locate and service equipment faster.

Cloud Collaboration and the Future of BIM Platforms

As BIM models grow more complex, cloud-based platforms have become essential for team coordination. Remote access to real-time models allows architects, engineers, and contractors to collaborate from different locations. This has become especially important in a post-pandemic world where remote workflows are now standard.

The Role of Common Data Environments

Common Data Environments (CDEs) act as a single source of truth for all project documentation, from drawings to RFIs. This reduces errors and ensures everyone is working with the most current information.

Security and Accessibility

Cloud-based BIM platforms offer encryption and backup systems that protect intellectual property. At the same time, authorized team members can access data from any device.

Emerging Technologies Influencing the Next Generation of BIM

BIM continues to evolve, influenced by advancements in artificial intelligence, machine learning, digital twins, augmented reality (AR), and the Internet of Things (IoT). These technologies are pushing BIM beyond modeling into real-time performance monitoring, predictive maintenance, and even automation.

AI and Predictive Modeling

AI is being used to analyze historical project data to forecast construction risks, optimize schedules, and improve design outcomes. This takes BIM's decision-making potential to a new level.

The Role of IoT Integration

IoT devices embedded in buildings can feed live data back into the BIM model. This enables proactive facilities management and real-time performance tracking.

Education, Standards, and the Globalization of BIM

As BIM becomes the standard for project delivery worldwide, education and training programs have expanded to meet demand. Universities now offer BIM-specific degrees, while certifications, such as the BIM Level 2 mandate in the UK, have established benchmarks for professional practice. Globalization has also encouraged the adoption of universal standards such as ISO 19650, which promotes consistency across borders.

The push for standardized BIM practices has made it easier for international teams to collaborate on large-scale projects. As different regions adopt their own mandates and guidance, a shared vocabulary and workflow structure ensure smoother integration across firms and disciplines.

The Broader Impact of BIM on the AEC Industry

BIM has done more than improve drawings or project timelines—it has reshaped the entire construction landscape. It has encouraged transparency, accountability, and long-term thinking. From the early days of CAD to today's integrated digital ecosystems, the evolution of BIM reflects a broader transformation in how we conceptualize and create the built environment.

The demand for innovative, sustainable, and maintainable buildings continues to rise. As a result, the role of BIM will only grow, expanding into urban planning, infrastructure, and facilities well beyond traditional construction. Its integration with emerging technologies ensures that BIM remains at the forefront of innovation in design and construction.

BIM as the Foundation for Smarter Cities

The evolution of BIM is far from complete. As cities embrace digital transformation, BIM will serve as the foundation for connected infrastructure and thoughtful city planning. From underground utilities to traffic systems, digital models will provide the insight needed to build resilient and efficient urban environments. Future advancements will likely include real-time urban simulations, automated construction powered by robotics, and holistic environmental planning through multi-scale modeling. BIM's evolution serves as a reflection of the changing priorities and possibilities of the built world. Check out our LNE Surveys blog to learn more about BIM and other methods of surveying your commercial projects.

Why Drone Surveying Is Revolutionizing the Surveying Industry

In recent years, the surveying industry has experienced a profound transformation through the rise of drone technology. Drone surveying—once considered experimental—has become a cornerstone of modern surveying practices, especially for existing commercial buildings. From streamlining inspections to delivering detailed 3D models, drones are enhancing accuracy, safety, and speed like never before.

How Drone Surveying Enhances Efficiency in Commercial Building Inspections

Time is a precious resource in the commercial real estate world. Traditional surveying techniques for commercial buildings often involve days of manual data collection, ladder work, and the use of scaffolding. Drone surveying can significantly reduce that timeline to hours.

Fast Turnaround for Property Assessments

Drone flights can be completed in a fraction of the time it takes to conduct manual inspections. This accelerated data collection is especially beneficial for real estate transactions, compliance reports, and emergency assessments.

More Data in Less Time

Modern drones equipped with LiDAR, photogrammetry, and high-resolution cameras can capture more accurate spatial data than a team of surveyors could manually. This ensures a comprehensive digital record that’s available immediately after the flight.

The Safety Benefits of Using Drone Surveying for Existing Structures

One of the most compelling advantages of drone surveying is the dramatic reduction in human risk. Existing commercial buildings—especially older or damaged ones—often pose safety concerns.

Reducing the Need for High-Risk Access

By replacing the need for rope access, scaffolding, and lifts, drones enable workers to stay safely on the ground. Inspections of roofing, exterior façades, or towers can be done without setting foot on the structure.

Mitigating Liability for Property Owners

Fewer human interactions with potentially dangerous areas mean fewer accidents and insurance claims. For commercial building owners, this represents a significant reduction in liability exposure during routine inspections.

Drone Surveying Improves Visibility and Detail for Hard-to-Reach Areas

Complex architecture is common in commercial properties, often featuring tall walls, recessed sections, and protruding HVAC systems that limit visibility for traditional survey teams. Drones overcome these challenges by maneuvering around obstacles to capture detailed angles of the entire building envelope, including walls, windows, parapets, flashing, and drainage systems. The high-resolution imagery collected is then processed into orthomosaics or 3D point clouds, creating a digital twin of the structure. This model serves as a precise visual reference for measurements, comparisons, and long-term planning.

Thermal Drone Surveys Identify Hidden Issues in Commercial Buildings

Thermal drone technology elevates inspection capabilities by detecting temperature variations that are invisible to the naked eye, often signaling underlying structural or mechanical issues. These drones can identify areas of moisture intrusion in roofs or walls well before visible damage appears, helping prevent mold growth, internal decay, and costly repairs. They also pinpoint inefficiencies in HVAC and insulation systems by highlighting zones of heat loss or gain. This allows building managers to address energy waste proactively, improving overall system performance and reducing utility expenses.

Drone Surveying Streamlines the Renovation and Retrofit Process

Renovating an existing commercial building requires a detailed understanding of current conditions, and drone surveying provides the precise data needed to support confident design decisions. Aerial surveys provide accurate measurements of rooftops, walls, and site layouts, enabling architects and engineers to reduce assumptions and avoid costly mistakes. The digital models generated from drone data can be shared instantly with all stakeholders, improving collaboration and transparency throughout the project. With everyone referencing the same up-to-date information, renovations and retrofits move forward more efficiently and with fewer surprises.

Drone Surveying Reduces Operational Disruption During Assessments

Unlike traditional inspections that may require tenant notifications, limited access, or even temporary shutdowns, drone surveying offers a non-intrusive alternative that minimizes disruption. Most drone surveys can be completed entirely from the exterior, preserving the privacy and productivity of tenants in sensitive environments, such as hospitals, retail centers, and offices. Flexible scheduling enables inspections to occur during evenings or weekends, thereby further reducing interference with daily operations. Because drones require minimal setup, repeat assessments can be conducted efficiently without the need to reinstall equipment.

Enhanced Recordkeeping and Long-Term Maintenance Strategies

Drones aren’t just for one-time surveys. They offer long-term value through digital documentation that tracks changes, wear, and repair needs over time.

Creating a Visual Archive of Building Conditions

Aerial photos and models captured today serve as a benchmark for future comparisons. These visual records support long-term maintenance strategies, capital improvement planning, and risk management.

Supporting Insurance and Regulatory Documentation

Drone footage can serve as evidence during claims or audits. Insurance companies are more receptive to detailed photo documentation that supports the condition of a structure before or after an incident.

Regulatory Compliance and Reporting Made Easier With Drones

Commercial buildings must adhere to a range of regulations, from fire codes to accessibility laws, and drone surveying helps streamline compliance by providing fast and reliable documentation. Many municipalities now accept drone-generated data in place of traditional inspections, enabling building professionals to meet both local and federal standards more efficiently. With FAA-compliant operations, the imagery and reports produced can be submitted directly to governing bodies, speeding up the approval process. This same data also accelerates repair timelines, providing contractors with the clarity they need to quote accurately and begin work without delay.

Drones Make 3D Building Modeling More Accessible Than Ever

Creating a 3D model of a commercial building once required extensive labor, specialized scanning equipment, and multiple on-site visits; however, drone surveying has dramatically streamlined the process. With the ability to combine LiDAR and photogrammetry in a single flight, drones can generate highly accurate digital models that support redesigns, occupancy planning, and site evaluations. These models integrate seamlessly with asset management platforms, allowing property owners to track building components, repairs, and upgrades in a centralized system. The result is a virtual, data-rich replica of the building that enhances operational control and strategic planning.

The Cost-Effectiveness of Drone Surveying for Commercial Properties

Although drones may initially seem like a high-tech luxury, they are quickly proving to be cost-effective tools for commercial building stakeholders. By reducing the need for scaffolding, lifts, and large on-site teams, drone surveying significantly reduces labor and equipment expenses. Their ability to identify structural or moisture-related issues early allows property managers to invest in proactive repairs rather than costly emergency fixes. Over time, these savings compound—making drones a smart financial investment as well as a practical one.

The Future of Drone Surveying in Commercial Building Management

Although drones may initially seem like a high-tech luxury, they are quickly proving to be cost-effective tools for commercial building stakeholders. By reducing the need for scaffolding, lifts, and large on-site teams, drone surveying significantly reduces labor and equipment expenses. Their ability to identify structural or moisture-related issues early allows property managers to invest in proactive repairs rather than costly emergency fixes. Over time, these savings compound—making drones a smart financial investment as well as a practical one.

Visit our LNE Surveys blog to learn more about our surveying services for customers nationwide.

What Is a 2D Schematic Floor Plan?

When it comes to documenting existing commercial buildings, few tools are as essential as the 2D schematic floor plan. This foundational drawing provides a top-down view of the building's layout, showing walls, doorways, windows, fixed equipment, and circulation paths. For commercial property owners, facility managers, architects, and surveyors, the 2D schematic floor plan offers a clear snapshot of how space is organized and used—critical information for renovations, lease agreements, occupancy planning, and regulatory compliance.

Unlike complex 3D modeling systems, the 2D schematic floor plan is straightforward, universally readable, and easily shared across stakeholders. Whether you're reconfiguring office layouts, preparing for tenant buildouts, or conducting due diligence, this visual document is one of the first steps in understanding a building's existing conditions.

The Purpose of a 2D Schematic Floor Plan in Commercial Settings

The primary goal of a 2D schematic floor plan is to capture the current spatial configuration of an existing commercial building. Unlike construction blueprints that are used for building from scratch, schematic floor plans are often created after a building has already been constructed. These drawings provide high-level information used for decision-making across multiple departments and disciplines.

In commercial buildings, space is a financial asset. Knowing exactly how it's divided, occupied, or underutilized can significantly affect operational efficiency, leasing potential, and renovation planning. From warehousing to retail centers, office complexes to industrial facilities, a 2D schematic floor plan offers immediate insights into how each area functions.

What a 2D Schematic Floor Plan Includes

A well-executed 2D schematic floor plan strikes a balance between simplicity and utility. It does not include structural or mechanical details, like full construction drawings, but it does provide enough clarity to support a wide range of commercial planning activities.

Core Layout Elements

The schematic floor plan shows the layout of walls, partitions, hallways, and rooms within the existing building footprint. Each element is represented using lines and basic symbols, keeping the information accessible to both technical and non-technical stakeholders.

Doors, Windows, and Entry Points

All access points are labeled, including main entrances, emergency exits, and interior doors. Knowing the location of doors and windows can impact everything from security planning to natural light assessments.

Fixed Equipment and Fixtures

In commercial buildings, such as medical offices, restaurants, or laboratories, certain fixtures are typically permanent. Schematic floor plans often include these fixtures to help teams plan renovations or equipment upgrades more efficiently.

Room Names and Functions

Each room or zone is typically labeled with its current use (e.g., “Conference Room,” “Storage,” “Open Workspace”). This helps facility planners and space managers assess whether areas are being used appropriately or could be optimized.

Use Cases for 2D Schematic Floor Plans in Commercial Projects

A 2D schematic floor plan is not a one-size-fits-all document. It adapts based on the project’s goal. Here are some of the most common reasons a commercial team would request or rely on one:

Renovation and Tenant Improvements

Before updating office layouts or retrofitting a warehouse, teams need a clear picture of what currently exists. A 2D schematic floor plan makes it easier to test fit concepts, identify space conflicts, and work within existing constraints.

Lease Management and Space Planning

Property managers and landlords often use schematic plans to market available suites and to clarify usable square footage for prospective tenants. These plans help determine whether multiple tenants can share a floor or if a single occupant is more appropriate.

Facility Maintenance and Asset Management

Schematic floor plans are key tools for facilities teams that need to track the location of HVAC systems, fire extinguishers, electrical panels, or other serviceable assets. The floor plan serves as a map for both routine and emergency maintenance.

Code Compliance and Safety Planning

In fire safety, ADA compliance, or health department reviews, having a 2D schematic floor plan ensures that building inspectors and safety consultants can quickly assess egress routes, accessibility, and hazard zones.

How 2D Schematic Floor Plans Are Created for Existing Buildings

Creating an accurate 2D schematic floor plan of an existing commercial space requires a blend of site-based observation, modern technology, and skilled drafting. Although the process doesn’t involve new construction, it is highly technical and demands precision. Survey teams begin by collecting measurements using traditional tape measures, laser distance meters, or increasingly, 3D laser scanners—valued for their speed and accuracy in capturing building dimensions and spatial relationships. Alongside these measurements, teams document the architectural context through photographs and voice notes, especially when unique features or room functions require clarification for proper labeling. Once the field data is collected, it is transferred into CAD software or BIM platforms, where drafters recreate the layout digitally. These tools enable the accurate placement of walls, doors, and key features, while clearly labeling each space to meet the functional and visual needs of commercial building documentation.

Benefits of 2D Schematic Floor Plans in Commercial Building Surveys

The simplicity of a 2D schematic floor plan is also its strength. Unlike dense engineering blueprints, these drawings can be understood by building owners, leasing agents, contractors, and even tenants.

Speed and Cost Efficiency

Compared to full 3D scans or construction document sets, 2D schematic plans can be created quickly and affordably—especially when the goal is to understand space rather than build something new.

Ease of Communication Across Teams

From real estate brokers to interior designers, having a universally readable plan reduces miscommunication and streamlines the decision-making process.

Useful for Future Planning

Even if no immediate changes are being made, having a current 2D schematic floor plan on file helps with future budgeting, marketing, and forecasting for capital improvements.

Common Mistakes to Avoid With 2D Schematic Floor Plans

Despite their simplicity, schematic floor plans can lead to costly errors if not handled correctly. Commercial projects rely on accuracy and consistency, so attention to detail is crucial.

Outdated or Incomplete Plans

Using outdated or incomplete floor plans can lead to incorrect assumptions about available space, safety compliance, or asset placement. Always ensure that your schematic reflects the building's current conditions.

Poor Labeling or Lack of Legends

A schematic plan that lacks room names, square footage, or a key to explain symbols creates confusion instead of clarity. Be sure that all elements are labeled clearly and consistently.

Overcomplicating the Design

Adding too much detail—such as plumbing lines or structural calculations—can clutter a schematic and undermine its purpose. Keep it focused on spatial layout and core fixtures.

How 2D Schematic Floor Plans Work With Other Commercial Building Tools

While a 2D schematic floor plan is valuable on its own, it becomes significantly more effective when integrated with other commercial surveying and design tools. In teams that utilize Building Information Modeling (BIM) platforms, the schematic floor plan typically serves as a foundational layer, supporting the development of 3D models and helping to verify design intent against existing conditions. These floor plans can also be embedded into geographic information systems (GIS) or facility management software, where they aid in tracking building assets, coordinating maintenance tasks, and monitoring real-time tenant usage. Additionally, in projects that utilize drone imaging or 3D laser scanning to document exteriors and structural elements, the 2D schematic floor plan complements that data by capturing the internal spatial layout, offering a comprehensive view of the building from multiple dimensions.

When to Update a 2D Schematic Floor Plan

Commercial buildings are constantly evolving—spaces are reconfigured, tenants come and go, and renovations reshape the internal layout. Because of this, it’s essential to update 2D schematic floor plans regularly to reflect the building’s current state. Updates are especially important after major renovations or tenant buildouts, when leasing new spaces or modifying occupancy arrangements, following safety audits or regulatory compliance updates, and before critical financial events like appraisals, refinancing, or property sales. Keeping floor plans up to date ensures you always have an accurate, dependable reference for decision-making, planning, and operational efficiency.

Why the 2D Schematic Floor Plan Still Matters in Commercial Building Projects

The 2D schematic floor plan remains one of the most valuable tools for professionals working with existing commercial buildings. It simplifies space visualization, supports operational decisions, and enables planning without the burden of overly complex models. In an industry where time, space, and clarity are crucial, this simple top-down drawing delivers dependable insight.

Whether you're assessing how to subdivide a suite, evaluating fire code compliance, or preparing a facility for expansion, a 2D schematic floor plan is a foundational asset worth maintaining and updating as your commercial building evolves.

What to Expect From Professional Virtual Tours of Existing Commercial

Virtual tours are no longer just a novelty for residential real estate—they've become an essential tool for commercial building owners, managers, and renovation teams. As demand grows for remote access and digital collaboration, professional virtual tours of existing commercial buildings offer an innovative and efficient way to assess conditions, plan upgrades, and communicate with stakeholders. These immersive digital walkthroughs go far beyond smartphone footage or stitched images; they combine high-resolution visuals with spatial data, allowing viewers to experience the environment in accurate detail from anywhere in the world. Whether you're preparing for a renovation, selling a property, or managing a multi-site portfolio, virtual tours provide a comprehensive view of what's truly inside the walls.

The Importance of Virtual Tours Before Design Decisions

Before making any renovation or investment decision, stakeholders require a clear and accurate understanding of the building as it currently exists. Professional virtual tours offer that clarity. These tours allow viewers to explore each floor, room, and corridor without setting foot on the property. With high-definition 360-degree photography and spatial data integration, a virtual tour reveals everything from ceiling height and finishes to lighting conditions and equipment placement. For aging commercial buildings, this level of insight is invaluable—especially when original documentation is missing or outdated.

How Virtual Tours Improve the Planning Process

When renovation teams begin scoping a project, they rely on accurate visuals and measurements to inform decisions. Virtual tours streamline this planning phase by providing a digital reference of existing conditions that’s accessible anytime, anywhere. Architects and engineers can revisit the space virtually as often as needed, avoiding multiple site visits and reducing travel costs.

Supporting Design Decisions

Rather than relying solely on notes or 2D photos, professionals can examine the virtual tour to verify layouts, window placements, and circulation paths. This examination helps align early design decisions with real-world limitations and opportunities.

Identifying Problem Areas

Virtual tours make it easy to identify problem areas—such as damaged ceilings, inaccessible mechanical rooms, or outdated electrical systems—that require attention in renovation plans. Teams can annotate issues directly in the tour interface, streamlining communication and collaboration.

Enhancing Stakeholder Collaboration

Virtual tours allow property owners, designers, contractors, and consultants to work from a shared visual platform. Everyone sees the same data, which minimizes confusion and speeds up approvals.

Professional Tools That Power Effective Virtual Tours

Creating an effective commercial virtual tour requires more than just a camera. Professionals use a blend of scanning equipment, editing software, and spatial modeling to capture the building in its current state. The result is a detailed, navigable experience that reflects both the layout and condition of the property with exceptional accuracy.

High-Definition Image Capture

High-resolution cameras capture 360-degree images at every significant point throughout the building. These images are then carefully stitched and color-corrected to reflect actual conditions. Lighting, angles, and exposure are carefully calibrated to ensure a consistent, professional look throughout the tour.

Laser Scanning and Point Cloud Integration

For added precision, many virtual tours incorporate LiDAR or laser scanning to generate point clouds. These allow the virtual tour to include accurate dimensions and be overlaid with business information modeling (BIM) or CAD files. This integration makes the tour not just visually immersive but also technically sound for renovation planning and documentation.

Walkthrough Path Customization

The tour isn’t just a slideshow—it’s a curated experience. Professionals map the most logical routes through the building, ensuring viewers move intuitively from space to space. Strategic navigation points are chosen to highlight key areas and reduce confusion during the digital walkthrough.

Using Virtual Tours in the Pre-Design Phase

One of the most powerful uses of a virtual tour is during the pre-design phase. When design professionals begin working on older commercial properties, they often face unknowns that can slow progress. A virtual tour helps bridge that information gap, delivering real-world visual context right from the start. With spatial data built into the tour, architects can verify measurements and simulate layout options. Interior designers can assess lighting and finishes, while MEP engineers can pre-plan system routes. The tour serves as a digital counterpart to the building—offering insight without obstruction. It accelerates early-stage collaboration by providing all stakeholders with a shared visual baseline before they step on site.

Virtual Tours Help Coordinate Across Technical Disciplines

Virtual tours help streamline coordination across the various technical disciplines involved in renovation projects, including architects, civil engineers, HVAC consultants, and fire safety experts. These professionals all require a shared, detailed understanding of the existing site to work efficiently, and virtual tours provide that unified visual reference. When every team member can access the same immersive walkthrough, it reduces miscommunication, prevents design conflicts, and ensures key conditions aren't overlooked. Many virtual tours are compatible with BIM and CAD platforms, allowing designers to overlay proposed systems directly onto real-world visuals, improving accuracy during modeling.

Enhancing Facility Management With Virtual Tours

After renovations are complete, virtual tours continue to provide value. For building operators and facility managers, a well-executed tour acts as a living record of the space. It allows teams to revisit mechanical rooms, access points, or tenant suites without disrupting operations. These tours also support preventive maintenance planning by making it easy to assess areas that may require attention over time visually.

Equipment and Access Visibility

Virtual tours help facility staff locate mechanical rooms, electrical panels, water shutoffs, and other essential components—without relying on memory or paper records. This immediate visual access improves response times during routine checks and urgent repairs.

Maintenance Planning Made Easier

With high-resolution visuals and 3D data, managers can plan inspections, identify wear patterns, and schedule proactive maintenance before issues arise. It also helps contractors quote repairs more accurately without requiring an in-person walkthrough.

Virtual Tours for Emergency Readiness

First responders and safety coordinators can utilize virtual tours to become familiar with building layouts, exit routes, and equipment locations. This level of awareness enables faster and safer responses in emergencies. It also aids in drafting emergency action plans tailored to the specific spatial conditions of the facility.

Virtual Tours in Leasing and Commercial Sales

Virtual tours offer a significant marketing advantage for real estate brokers and commercial property owners, allowing potential tenants or buyers to explore a space at their convenience. This advantage is especially valuable for attracting remote or out-of-state clients, who can evaluate a property without the need for travel—making it ideal for leasing in business parks, medical centers, or office buildings where in-person tours are less practical. Because these tours provide an accurate, unaltered view of the property, they foster transparency and build trust, eliminating concerns about misleading photography or hidden flaws.

Ensuring Accuracy and Quality in Virtual Tours

Not all virtual tours are created equal. A poorly executed tour can mislead viewers or omit important details. That's why it's crucial to collaborate with professionals who utilize precise technology and adhere to best practices. Quality virtual tours are both visually accurate and technically reliable, allowing teams to make informed decisions with confidence.

Quality Control in Scanning

Professionals ensure that all scans are complete, accurate, and free from visual distortions. They may return for reshoots if lighting or obstructions affect the initial capture. This attention to detail ensures that even hard-to-see areas, such as utility closets or service corridors, are accurately documented.

File Format and Accessibility

Virtual tours should be viewable across multiple platforms—desktops, tablets, and mobile devices—and compatible with standard software. Files are often hosted online for remote access or embedded into project dashboards. Ensuring compatibility across devices also makes collaboration easier for geographically dispersed teams.

Ongoing Updates

Some teams update the tour as the project progresses, creating versioned walkthroughs that document construction stages or phased renovations. This evolving documentation becomes a valuable asset for tracking changes, verifying milestones, and supporting future upgrades.

Why Virtual Tours Are Ideal for Older Commercial Buildings

Older commercial properties pose specific challenges that virtual tours can help overcome. With outdated floor plans, inconsistent maintenance records, and unknown system configurations, these buildings necessitate a more thorough investigation. A professional virtual tour uncovers the reality of what's there—supporting more thoughtful planning, more accurate budgeting, and safer construction workflows. Instead of guessing based on assumptions or waiting for surprises in the field, teams get a clear picture from day one. Virtual tours also reduce the need for repeated site visits, saving time and minimizing disruptions to building occupants. In many cases, they reveal critical details—such as inaccessible spaces or structural obstructions—that traditional surveys alone might overlook.

Virtual Tours That Move Projects Forward With Confidence

Professional-grade virtual tours rely on more than basic photography—they're built on accurate, real-world data. Using advanced 3D scanning, panoramic imaging, and spatial modeling, today's virtual tour specialists create digital walkthroughs tailored to a wide range of commercial needs. Whether the goal is a complete renovation, marketing a property, or managing multiple facilities, high-quality virtual tours offer the clarity and confidence teams need to move forward effectively.

Visit the LNE Surveys blog for more resources on commercial building analysis, survey technology, and renovation planning tools built for today’s digital workflows.

Common Challenges in Floor Planning for Older Commercial Buildings

Renovating or repurposing older commercial buildings brings a distinct set of complexities—none more fundamental than those related to floor planning. Unlike new construction, where layouts can be shaped from scratch, older buildings come with physical limitations, outdated infrastructure, and legacy designs that often resist change. From accommodating new technology to complying with modern codes and accessibility standards, floor planning in aging structures requires more than aesthetic reimagining—it demands structural creativity, spatial analysis, and cross-disciplinary coordination. The role of precise measurement and planning becomes essential as teams work to balance modern needs with historical constraints, all while minimizing disruption and maximizing usable space.

Redefining Space Use Through Thoughtful Floor Planning

Older commercial buildings are often underutilized, not because they lack square footage but because their layouts are inefficient or outdated. Effective floor planning begins with a clear understanding of how the space is currently functioning and how it could be optimized. This process starts with detailed site surveys and building assessments to reveal the structural realities of the space, including the placement of load-bearing walls, column spacing, utility routes, and circulation paths. By evaluating these conditions early, teams can uncover opportunities for reconfiguration that don't require major demolition or costly intervention. Unlocking a building's potential isn't about imposing modern designs onto outdated frameworks it's about working within those constraints to create thoughtful, functional spaces that meet today's needs.

How Floor Planning Must Adapt to Legacy Infrastructure

Older buildings often come with dated or undocumented infrastructure that complicates space reallocation. Floor planning in these environments means accounting for—and often working around—systems that weren’t designed with modern use in mind.

Irregular Structural Layouts

Beams, columns, and support walls may be placed inconsistently or in non-standard grids, making it challenging to implement open floor concepts or flexible workspaces. In many cases, structural elements can't be removed without costly reinforcements, so planners must get creative about integrating these features into the design.

Upgrading Mechanical Systems

HVAC systems, electrical panels, and plumbing networks in older buildings cannot often support new layouts or occupancy levels. Floor planning must be done in tandem with mechanical upgrades, ensuring there's room for ductwork, wiring, and accessibility without sacrificing headroom or usable space.

Low Ceiling Challenges

Many older buildings have lower-than-standard ceiling heights, particularly in retrofitted industrial properties. These lower ceilings affect lighting design, system installation, and the perception of spaciousness. Effective floor planning takes vertical space into account, finding opportunities to recess systems or create multi-height spaces for visual relief.

Hidden or Inaccurate Utilities

With decades of changes—some undocumented—it's not uncommon to find electrical or plumbing lines that were added ad hoc. Floor planning often begins with an exploratory phase, utilizing scanning technology to map what's hidden behind walls and floors before making final layout decisions.

Floor Planning Challenges Related to Modern Building Codes

Meeting today's building codes presents a significant challenge when renovating older commercial spaces, many of which were built long before modern accessibility, fire safety, and egress standards existed. Effective floor planning must reconcile these outdated layouts with current legal obligations, often necessitating spatial adjustments, such as widening corridors, enlarging restrooms, or adding ramps and elevators. These upgrades can be challenging to accommodate in already constrained floor plates, particularly in multi-tenant properties where shared amenities and exit paths must meet the code for every occupant. By addressing these requirements early in the planning process, teams can minimize costly design changes and ensure the finished space is both functional and legally compliant.

How Floor Planning Affects Energy Efficiency in Older Buildings

Energy performance is a growing concern for commercial real estate, and floor planning plays a significant role in optimizing or hindering that performance. In older buildings, poor insulation, single-pane windows, and outdated HVAC systems already present energy challenges, and inefficient layouts can compound the issue. Poor zoning may mean entire wings must be heated or cooled even when underused. At the same time, floor planning that reorients workspaces around natural light or groups similar-use zones together can lead to energy savings over time. For example, placing conference rooms near windowed facades and support spaces toward the building core allows daylight to be maximized without sacrificing privacy. Retrofitting mechanical systems often depends on thoughtful planning, too, and by incorporating these spatial demands into floor planning early, teams can ensure energy-efficient upgrades don't compromise overall usability.

Adapting Floor Planning for New Building Functions

Many older commercial buildings are being repurposed for new uses: warehouses are being converted into office hubs, schools are being transformed into medical clinics, and department stores are being repurposed into mixed-use developments. The original design of the building may not support the new function's traffic flow, access needs, or system requirements. Structural spans designed for wide-open showroom floors may not align with the partitioned layout of a clinic or educational space. In these cases, floor planning becomes a balancing act between preserving what works, replacing what doesn't, and ensuring that the new space meets the standards expected by modern occupants.

Ensuring Lease Renewals Through Smarter Floor Planning

For owners of multi-tenant buildings, especially older ones, the long-term success of the property often depends on how well the layout can adapt to the evolving needs of tenants. Smart floor planning supports this flexibility by incorporating open floor plates, modular walls, and centralized mechanical systems that make reconfiguration less costly and more efficient. This adaptability is especially valuable in older buildings, where structural or mechanical changes can be expensive and disruptive. Tenants are more likely to renew leases if their space can grow or shift with minimal construction. Moreover, floor plans that prioritize comfort, accessibility, and logical circulation help enhance satisfaction and increase a building's overall appeal and retention.

Addressing Vertical Access and Circulation in Floor Planning

While horizontal layout often receives the most attention, vertical circulation is equally important—especially in multi-story buildings that predate modern accessibility codes. In older commercial structures, floor planning must consider the location, capacity, and code compliance of stairs, elevators, and mezzanines. Many of these buildings were designed at a time when vertical access was limited, centralized, or not built for universal use, which presents challenges for both usability and emergency egress.

Improving Vertical Access

Adding or updating elevators is one of the most complex aspects of renovating older buildings. Not only do they require significant structural modifications, but elevator shafts also consume valuable floor space and often necessitate extensive code upgrades. Stairways, too, may be too narrow or steep to meet modern standards, necessitating redesign or the installation of supplemental routes. Effective floor planning considers these factors early, allocating vertical infrastructure in a way that supports both code compliance and smooth user movement throughout the building.

Floor Planning and the Preservation of Historical Elements

In many older commercial buildings, there is significant cultural and market value in preserving historical elements such as brickwork, ornate lobbies, or exposed timber beams. While these features can help a property stand out, they also introduce challenges to floor planning, often limiting structural changes or system upgrades. Preserving a grand staircase might interfere with egress requirements, or exposed ceilings may restrict the space needed for modern HVAC systems. In these cases, floor planning must strike a careful balance between maintaining historic character and meeting present-day functional demands. Though this often requires creative and sometimes costly solutions, the result is a space that honors its past while delivering value to contemporary users.

Facilitating Collaboration Through Strategic Floor Planning

Large-scale renovations in older buildings often require input from a wide range of professionals, including architects, engineers, designers, and contractors, each bringing unique priorities to the table. Effective floor planning ensures that all stakeholders operate from a shared understanding of spatial constraints and opportunities, reducing friction and improving coordination. An accurate, up-to-date base plan is essential for preventing system clashes, synchronizing installation timelines, and minimizing costly rework. Tools such as laser scanning, CAD integration, and BIM enhance this process, primarily when multiple teams work on overlapping scopes. In this collaborative environment, floor planning serves as the central language that unites diverse teams, driving the project forward with clarity and efficiency.

The Role of Surveying in Floor Planning for Older Buildings

Before effective floor planning can begin, accurate data is essential—especially in older buildings, where existing records may be outdated, inconsistent, or incomplete. Professional surveyors provide critical support through detailed interior surveys, 3D scans, and floor-level mapping that reveal the true geometry of the space, including wall thicknesses, elevation changes, and hidden mechanical systems. With this reliable information, architects and engineers can avoid guesswork, reducing errors and accelerating the design process. Surveyors also play a key role in identifying compliance issues, ADA limitations, and other spatial constraints that could impact layout decisions. In many renovation projects, their work becomes the technical backbone of every floor planning strategy.

Data-Driven Strategies for Renovation Floor Planning

Floor planning for older commercial buildings comes with unique challenges—from missing documentation and outdated infrastructure to structural surprises and complex code requirements. Successful renovation projects depend on accurate, up-to-date data that informs every stage of the planning process. With the use of advanced scanning technology and detailed fieldwork, design teams can access the base drawings, elevation maps, and existing-condition documentation needed to move forward with clarity. Whether tackling a change-of-use conversion, a complete interior renovation, or a multi-tenant reconfiguration, having precise spatial information enables better design decisions and minimizes costly revisions. Floor planning in legacy buildings doesn't have to rely on assumptions—starting with accurate measurements leads to more brilliant, more efficient outcomes.

To learn more about the common challenges in floor planning for older commercial buildings, visit our LNE Surveys blog.

What Surveyors Do: A Breakdown of Services and Responsibilities

In the world of architecture, engineering, and construction, surveyors play a foundational role that often goes unnoticed but is vital to the success of every built environment. Before the first brick is laid or renovation begins, surveyors are on-site—measuring, mapping, analyzing, and documenting the land or structure. Their insights guide design accuracy, ensure legal compliance, mitigate risk, and promote cost efficiency. Whether working on vacant lots, existing commercial buildings, or complex infrastructure projects, surveyors deliver the spatial intelligence necessary to plan, build, and manage the physical world. Their responsibilities extend far beyond measuring boundaries—they shape the integrity and safety of the projects we depend on every day.

Maximizing Site Value Through Surveyors' Insight

Every successful project starts with a complete understanding of the land or structure involved. Surveyors are responsible for uncovering this baseline truth. They translate terrain, boundaries, easements, and underground utilities into usable data for architects, engineers, and developers. Through topographic assessments, boundary studies, and utility mapping, surveyors identify physical and legal realities that shape the project's design and timeline. Their reports offer both opportunity and warning, showing where a building can go—and where it absolutely shouldn't. By unlocking this information early, surveyors help clients make smarter, faster, and safer decisions.

How Surveyors Prepare Sites for Design and Construction

Before design can begin, surveyors must capture the reality of what’s already there. This process blends traditional fieldwork with advanced surveying technology to create accurate models and datasets that inform every phase of development.

Boundary and Property Surveys

One of the primary tasks of surveyors is identifying legal property boundaries. Using historical records, GPS data, and physical site measurements, they mark the precise limits of ownership. This work prevents legal disputes, ensures zoning compliance, and protects property rights for all parties involved.

Topographic and Elevation Mapping

Surveyors also create detailed topographic surveys that record land elevations, slopes, vegetation, drainage paths, and other surface features. These maps enable engineers and architects to design structures that align with the site's natural contours and avoid environmental hazards.

Documenting Existing Conditions

In developed or urban areas, surveyors document existing structures, roadways, sidewalks, and infrastructure. This documentation includes capturing the locations of utility lines, poles, manholes, and underground systems. These as-built surveys ensure that new construction integrates smoothly with current conditions.

Preparing Site Plans for Designers

Once all data is gathered and verified, surveyors produce base maps and site plans used by design professionals. These files are often delivered in CAD or GIS formats, allowing seamless coordination with architectural and engineering software.

How Surveyors Support Informed Planning Decisions

With accurate site data in hand, planners and engineers can make more informed design choices, and surveyors play a crucial role in providing that foundational insight. From the earliest stages of development, surveyors help stakeholders assess risks, align designs with real-world conditions, and avoid costly missteps. They may identify floodplain zones, unstable soil, protected habitats, or easements that affect buildability—flagging these issues early to minimize redesigns and delays. Additionally, surveyors establish benchmarks and control points that ensure technical consistency throughout the project, allowing every element—from retaining walls to utility trenches—to be placed with precision and confidence.

The Surveyors' Role in Construction and Oversight

Surveyors aren’t just part of the planning process—they remain active throughout construction to ensure that the project stays aligned with approved plans. Their work provides spatial accuracy and quality control from groundbreaking to final inspection.

Staking and Layout

One of the most critical roles surveyors play during construction is staking. They translate digital plans into real-world reference points by marking the locations of foundations, walls, utilities, and roads. This layout process guides contractors and prevents misalignments that can lead to costly rework.

Tracking Elevation Changes

As construction proceeds, surveyors track vertical and horizontal deviations that could indicate issues with grading, drainage, or settling. Their reports help project managers adjust in real-time, maintaining project integrity and safety.

As-Built Verification

Once elements are installed, surveyors perform verification surveys to confirm that everything was built according to plan. These checks ensure that utilities are located correctly, structure dimensions are accurate, and the final layout meets zoning and code requirements.

Ensuring Compliance and Safety

Because surveyors maintain detailed records of site changes, they help teams prepare for inspections and certifications. Their documentation demonstrates that the structures meet approved designs and comply with applicable laws and regulations.

How Surveyors Contribute to Legal and Regulatory Processes

Surveying is more than just technical measurement—it's also a legally recognized process. Surveyors serve as expert witnesses and legal authorities in matters related to land ownership, easements, rights of way, and development rights.

Legal Boundary Documents

Surveyors produce plats, legal descriptions, and official site plans used in deeds, land transfers, and title reports. These documents are filed with local agencies and are often used in court to resolve disputes.

ALTA/NSPS Title Surveys

For commercial real estate transactions, surveyors often provide ALTA/NSPS surveys. These highly detailed assessments confirm boundary lines, access points, encroachments, easements, and zoning compliance—protecting both buyers and lenders from hidden risks.

Rezoning and Land Use Support

When clients seek to rezone a property or change its use, surveyors provide critical maps and studies to support the application. Their data helps justify the case to planning boards and regulatory bodies.

Testimony and Dispute Resolution

In property conflicts, surveyors may be called to testify or provide affidavits. Because of their licensed status and technical expertise, their findings often carry significant weight in mediation or litigation.

Surveyors in Infrastructure and Utility Planning

Beyond private properties and commercial sites, surveyors play a crucial role in infrastructure planning and utility management, helping municipalities and service providers maintain safe and functional systems. They map transportation corridors, stormwater networks, water lines, gas pipelines, and telecommunications infrastructure—data that is essential for planning improvements, avoiding service disruptions, and guiding future expansions. Surveyors also support right-of-way acquisitions, bridge design, and highway development, ensuring that all work is grounded in accurate measurements and legal documentation. Without their expertise, large-scale infrastructure projects would lack the precision and compliance necessary for successful execution.

The Role of Surveyors in Multi-Team Construction Projects

Construction and development projects often involve dozens of professionals working simultaneously across disciplines, and surveyors provide the shared spatial framework needed to keep them aligned. Their deliverables—such as control networks, benchmarks, and coordinate systems—serve as universal reference points for architects, civil engineers, geotechnical experts, environmental consultants, and contractors. By anchoring all project teams to a consistent and verified set of data, surveyors ensure that every decision, drawing, and excavation reflects the same physical reality. This level of coordination is essential in complex projects where tight tolerances, overlapping schedules, and interdependent systems demand precision and clarity at every stage.

How Surveyors Improve Risk Management and Cost Control

Errors in construction frequently stem from inaccurate or incomplete data, leading to misaligned structures, utility conflicts, legal disputes, and material waste—but surveyors play a critical role in preventing these outcomes. By delivering precise, verified field data early in the project lifecycle, surveyors enable teams to make informed decisions that reduce risk and control costs. Their input helps identify site constraints—such as unstable soil, easements, or impacts from neighboring properties—before designs are finalized or ground is broken. Surveyors also support contingency planning by highlighting potential red flags that might otherwise go unnoticed. Especially when budgets are tight, their expertise adds clarity, protects investments, and minimizes the likelihood of costly setbacks.

Surveyors and the Final Phase of Every Project

Just as surveyors are among the first on-site, they’re often among the last to leave. Their work continues even after the final structure is built, providing essential documentation and support for operations.

Final As-Built Records

Surveyors perform post-construction measurements to produce final as-built drawings. These records accurately document the installation locations of every component and serve as a reference for future maintenance, renovation, or expansion.

Site Compliance Sign-Off

As part of the project closeout, surveyors may be required to certify that the built structure matches approved plans and complies with zoning, floodplain, and accessibility regulations. Their sign-off can be necessary for obtaining final occupancy permits.

Data for Facility Teams

Facility managers often rely on the data generated by surveyors to locate buried utilities, understand drainage flows, or plan tenant improvements. These spatial records provide long-term value beyond the initial build.

Updating GIS and Assets

Public agencies and property managers may use surveyor-generated data to update GIS platforms and digital asset inventories. This data improves tracking, inspection scheduling, and capital improvement planning.

The Multidisciplinary Value of Surveyors in Modern Development

Surveyors contribute far beyond the construction industry, supporting a diverse range of sectors, including energy, telecommunications, agriculture, transportation, and environmental conservation. From siting solar arrays and wind farms to mapping wetlands and monitoring coastline erosion, their work underpins both public infrastructure and private development. In transportation, they enable precise highway and rail expansions, while in agriculture and environmental fields, they support land stewardship and regulatory compliance. As technology evolves, surveyors remain at the forefront, utilizing tools such as drone mapping, 3D laser scanning, GPS modeling, and GIS integration to enhance their capabilities. More than just boundary experts, surveyors are the stewards of spatial data, enabling smarter, safer, and more sustainable decisions across industries.

Trusted Surveying Services Backed by Precision and Experience

At LNE Surveys, we understand that accurate surveying is the foundation for every successful project. Our licensed surveyors use state-of-the-art tools and proven methodologies to deliver the reliable data your team needs—whether you’re developing a commercial site, expanding infrastructure, or retrofitting an existing building. From boundary surveys and construction staking to 3D scanning and utility mapping, we provide comprehensive services designed to eliminate uncertainty and support informed decisions at every step.

Visit our  LNE Surveys blog to explore additional resources and learn how our surveying technology supports projects nationwide with precision, professionalism, and industry-leading expertise.

The Role of a BIM Model in Renovating Existing Structure

In the world of commercial building renovations, few tools have transformed the process as thoroughly as Building Information Modeling (BIM). A BIM model offers an intelligent, data-rich digital representation of a structure, enabling teams to plan, visualize, and execute renovations with greater accuracy and fewer surprises. While BIM is often associated with new construction, its power is instrumental in pre-existing buildings where documentation is outdated, systems are incompatible, and the risk of unexpected issues is high. A well-executed BIM model enables architects, engineers, and owners to make informed decisions throughout every phase of a renovation—from discovery to long-term maintenance.

Unlocking Hidden Insights With a BIM Model

While every building tells a story through its structure, systems, and history, accurately deciphering that story can be difficult without the right tools. A BIM model acts as a translator between the physical and digital realms, making the invisible—like outdated wiring paths, concealed ductwork, or structural anomalies—visible and actionable. This level of digital clarity empowers renovation teams to align aesthetics with infrastructure, functionality with compliance, and design intent with real-world limitations. Whether revitalizing an aging warehouse into modern office space or adapting a legacy building to meet new occupancy demands, the BIM model brings a level of confidence and precision that traditional methods can’t match.

How a BIM Model Supports Renovation Planning in Existing Buildings

Planning a renovation begins with understanding exactly what exists within the current structure. With outdated or missing blueprints, renovation projects face risks from the start. A BIM model helps bridge that information gap by capturing precise existing conditions and using that data to guide design development, systems coordination, and scheduling strategies.

Documenting Existing Conditions

To begin, the current state of the building is documented using 3D laser scanning and photogrammetry. This data forms the foundation of the BIM model, encompassing everything from architectural geometry to MEP layouts. Unlike relying on physical walkthroughs or old PDFs, this approach provides a complete digital twin of the existing space.

Exploring Design Scenarios Digitally

Once raw data is captured, it's imported into BIM software platforms, such as Revit or Archicad. Here, the geometry is refined, layered with metadata, and segmented into functional systems, such as structure, electrical, and HVAC. The resulting BIM model becomes the core tool for architects and engineers to simulate potential upgrades and analyze space constraints.

Visualizing Proposed Modifications

With the BIM model established, teams can explore design interventions without touching the physical structure. Removing a wall, shifting ductwork, or replacing plumbing can all be visualized and tested digitally—reducing risk and saving time in the field. The model ensures that every change fits within the building’s real-world limitations.

Presenting Plans to Project Stakeholders

The BIM model offers more than just technical data—it becomes a shared visualization platform that communicates design intent. Owners, tenants, and contractors can all view proposed renovations and provide feedback early, minimizing downstream change orders and improving decision-making.

Driving Smarter Design Choices With a BIM Model

Every renovation begins with critical design decisions that can shape the project’s timeline, budget, and long-term performance. A BIM model provides design teams with the tools to evaluate multiple scenarios before committing to a single path. From testing different floor plan layouts to exploring energy-efficient system upgrades, the 3D model allows for real-time visualization and performance forecasting. Designers can anticipate how changes in one area—such as relocating a mechanical room or resizing a stairwell—will impact adjacent systems and code requirements. Instead of relying solely on static drawings or rough calculations, teams can base their design strategies on verified building data. This results in more intelligent, more efficient choices that align with both the project's goals and the building’s limitations.

The BIM Model Advantage in Coordinating Complex Renovations

Unlike new builds, renovations often require teams to work around existing infrastructure, tenants, or active operations. A BIM model brings clarity and coordination to this complexity, ensuring each discipline can plan their work without interfering with others.

Identifying System Conflicts

Clash detection is one of the most powerful features of a BIM model. As mechanical, electrical, and plumbing systems are layered into the model, spatial conflicts—such as pipes intersecting with beams—are immediately flagged, allowing teams to resolve issues digitally before they cause problems onsite.

Planning Construction Phases

For renovations in hospitals, schools, or offices, construction must be phased to minimize disruptions to day-to-day operations. BIM model simulations help map out each phase, showing what will be affected when and enabling efficient scheduling that supports continued occupancy.

Addressing Structural Challenges

Older buildings often include outdated materials or unusual load-bearing elements. A BIM model identifies these conditions and supports structural analysis, enabling engineers to evaluate whether beams require reinforcement or if an entire section needs a redesign.

Coordinating Project Teams

In renovation projects, clear communication between architects, engineers, contractors, and owners is critical. A centralized BIM model ensures that everyone works from the same up-to-date information, reducing siloed decision-making.

Facilitating Collaboration Across Renovation Teams With a BIM Model

Renovation projects bring together a wide range of professionals—each with their objectives, timelines, and technical constraints. Architects, engineers, contractors, facility managers, and building owners must all stay aligned, especially when working within the limitations of an existing structure. A BIM model serves as a shared digital workspace where everyone can collaborate, coordinate, and communicate in real time. This transparency helps reduce miscommunication, prevent overlapping efforts, and keep the project moving forward smoothly. In complex renovations where surprises are inevitable, a centralized BIM model ensures that all stakeholders remain informed and responsive throughout the entire project.

How a BIM Model Streamlines Budgeting, Compliance, and Sustainability

A renovation isn’t just about the design—it’s also about staying on budget, meeting regulations, and making sustainable improvements. The BIM model plays a central role in meeting all three goals. By integrating cost data, code requirements, and energy performance metrics into a single digital environment, the model enables teams to evaluate trade-offs and make informed decisions at every stage of the project.

Forecasting Project Costs

With a BIM model, design elements can be directly linked to material quantities and unit costs, allowing for real-time updates to be coupled with budget forecasts as the model evolves. Owners can assess the financial impact of every design decision before committing to construction.

Meeting Code and Permit Needs

Older buildings often require significant upgrades to meet modern codes. A BIM model can help model fire escapes, ADA compliance routes, ventilation requirements, and more. This modeling streamlines the permitting process by offering regulators a clear and accurate visual representation of proposed updates.

Designing for Energy Efficiency

When upgrading insulation, lighting, or HVAC systems, teams can utilize the BIM model to simulate energy performance and calculate ROI, ensuring that sustainability improvements are targeted, effective, and compliant with energy codes or green building certifications, such as LEED.

Reducing Waste Through Reuse

The BIM model helps teams identify which components of a building can be preserved, repurposed, or deconstructed efficiently. This identification supports more sustainable construction practices and can reduce the carbon footprint of a renovation project.

Simplifying Project Closeout and Handover With a BIM Model

As renovation work wraps up, one of the most overlooked but essential phases is project closeout—the moment when ownership and operational responsibility shift from construction teams to facility managers. A BIM model streamlines this transition by serving as a comprehensive, up-to-date digital record of all installations, modifications, and replacements made during the project. This transparency fosters trust between contractors and owners, eliminates gaps in institutional knowledge, and ensures that the renovated structure can be managed effectively from the outset.

Leveraging a BIM Model for Long-Term Facility Operations

After construction is complete, the benefits of a BIM model extend into the day-to-day operations of the renovated building. The model becomes a powerful tool for managing assets, planning maintenance, and ensuring future upgrades go smoothly.

Centralized Building Info

The BIM model stores detailed information about every component—from light fixtures to boilers. Facility managers can reference the model to locate systems, view service records, and track warranty information, replacing the need for bulky manuals or fragmented spreadsheets.

Predictive Maintenance Planning

Rather than waiting for systems to fail, maintenance teams can use the BIM model to schedule inspections and services based on accurate equipment lifespans. This predictive approach lowers emergency repair costs and extends the life of building systems.

Adapting Spaces for Tenants

As tenant needs evolve, the BIM model provides space planners with precise layouts, utility maps, and access points, enabling them to optimize the space. Electrical or plumbing modifications can be scoped quickly and safely with full knowledge of what lies behind walls and ceilings.

Recording Renovation History

The BIM model serves as a living archive of the building’s transformation. Future owners, contractors, or designers will have access to exact records of what was modified, how it was done, and when—reducing the time and cost of future projects.

Why a BIM Model is a Critical Asset for Renovating Existing Structures

Renovating older commercial buildings requires more than just construction expertise—it demands a clear understanding of the building’s limitations, potential, and history. In many cases, design teams must work with fragmented information, legacy systems, and unexpected structural quirks that complicate every phase of the project. A BIM model brings much-needed structure and clarity to this process by consolidating diverse building data into a cohesive, interactive model. Instead of reacting to problems as they arise, stakeholders can anticipate them, explore solutions in a virtual environment, and move forward with confidence. With the BIM model serving as both a planning tool and an operational roadmap, even the most complex renovations can be executed with greater precision, fewer delays, and lasting value.

Visit our LNE Surveys blog to learn more about how we create precise BIM models for existing commercial structures and help teams across the country renovate with confidence.

The Role of Floor Plans in Compliance for Commercial Renovations

When renovating a commercial space, many businesses focus on aesthetics, layout, and branding—but the foundation of a legally sound project starts with the floor plans. These architectural documents are essential not only for planning but also for securing code compliance, meeting safety standards, and passing inspections. Whether you're changing the interior layout or upgrading building systems, floor plans are the cornerstone of any compliant renovation strategy.

Why Floor Plans Are the First Step Toward Legal Compliance

Before any construction begins, commercial renovations must be reviewed and approved by local building departments. Floor plans are typically the first document submitted during this process. These plans serve as a formal record of your intended design and allow regulators to evaluate whether it complies with zoning laws, building codes, and fire safety standards. When floor plans are clear and well-labeled, they help streamline the permitting phase and reduce the risk of costly delays. In contrast, vague or incomplete plans often lead to resubmissions that can stall progress for weeks or even months. Submitting detailed, accurate floor plans signals to authorities that your project is compliant, professional, and ready to move forward.

Floor Plans and Building Code Compliance

Structural Requirements Must Be Reflected in Floor Plans

Commercial building codes are closely tied to the structural layout of a space, requiring details such as hallway widths, ceiling heights, load-bearing supports, and emergency exits to be clearly indicated on the floor plans. When repurposing a space—such as converting a restaurant into an office—these structural elements must be updated to meet legal standards. Omitting or failing to update this information can lead inspectors to deem the renovation noncompliant, regardless of construction quality. Correcting these violations after the fact is often costly and may expose the business to legal consequences. In some cases, non-compliance can even result in temporary closure until the issues are resolved.

Fire Safety Compliance Depends on Floor Plans

Fire codes are some of the most strictly enforced regulations in commercial renovations, and floor plans play a crucial role in demonstrating compliance. They must clearly show exit routes, fire barriers, sprinkler systems, and fire extinguisher locations, all of which are reviewed by the fire marshal during permitting and inspections. Floor plans should also indicate door swing direction, wall fire-resistance ratings, and evacuation paths to ensure occupant safety. Missing or inaccurate details can result in failed reviews, delaying your project and requiring expensive revisions. Accurate fire safety documentation is essential to moving forward without costly setbacks.

Accessibility Laws Are Verified Through Floor Plans

Compliance with the Americans with Disabilities Act (ADA) is a critical legal requirement in commercial renovations, and floor plans are essential for demonstrating that the space is accessible to individuals with disabilities. These plans must include features such as accessible restrooms, ramps, elevators, wide hallways, and proper signage to meet ADA standards. If floor plans fail to incorporate these elements, permit approvals may be denied, and the business could face legal action after the construction is complete. Including ADA-compliant design from the start helps avoid costly setbacks while promoting accessibility and inclusivity. It also builds trust with the public and reinforces a commitment to equitable access.

Floor Plans in Zoning and Land Use Approval

Ensuring the Renovation Fits Zoning Regulations

Zoning laws regulate how buildings can be used within specific areas, and floor plans must demonstrate that a commercial renovation aligns with the permitted use of the property. These plans must include details such as expected occupancy, business type, and any potential impact on traffic, noise, or surrounding infrastructure. Zoning boards use this information to determine whether the project fits within the area’s development plan. If the renovation falls outside current zoning allowances, a variance or conditional use permit may be required. In either case, clearly defined floor plans are essential for advancing the approval process.

Parking and Outdoor Use Must Be Represented in Floor Plans

In some municipalities, commercial floor plans must also include exterior elements, such as parking configurations, loading docks, trash enclosures, and outdoor seating areas. These elements influence zoning compliance and public safety and must be reviewed before permits are issued. If they are omitted from the floor plans, your renovation could be halted even if the building’s interior meets all other criteria.

How Floor Plans Affect Environmental and Energy Compliance

Green building regulations and energy codes are becoming increasingly strict across the U.S. Floor plans help verify that a renovation meets these modern sustainability standards. For example, your submitted plans may need to show the location of energy-efficient lighting systems, HVAC layouts, insulation values, window glazing, or solar panels. Some municipalities require energy models and green certifications—like LEED or Title 24 compliance in California—that are built directly into your floor plan documentation.

Renovations that affect a building’s energy usage or environmental footprint often require a formal review, and floor plans serve as the primary communication tool between you and the governing agency. Submitting clear, precise drawings can expedite this process and avoid unnecessary corrections later.

Floor Plans and the Role of Emergency Systems

Clearly Documented Safety Systems

Beyond fire safety, floor plans are used to verify the location and accessibility of other emergency systems, such as alarms, emergency lighting, security cameras, and backup generators. These details are not optional—commercial buildings must adhere to stringent safety requirements that vary based on occupancy type and local code. Floor plans provide officials with a bird’s-eye view of how emergencies will be handled in your space. They also help identify whether these systems are properly spaced and accessible to building occupants. Clear documentation ensures that emergency responders can quickly assess and navigate the building during a crisis.

Evacuation Maps Must Be Accurate

Once renovations are complete, businesses are typically required to display evacuation maps in public areas and employee breakrooms. These maps are generated from the floor plan and must align precisely with the built environment. Any inconsistency could not only confuse occupants during an emergency but also result in failed safety inspections and forced revisions. Evacuation maps should clearly mark exits, fire extinguisher locations, and safe zones. Consistent updates to these maps are also essential when renovations alter pathways, room layouts, or access points.

Coordination Between Floor Plans and Licensed Professionals

For a commercial renovation to pass inspection, the submitted floor plans must be created or approved by licensed professionals—typically architects, engineers, or certified drafting specialists. These experts ensure your design aligns with structural and legal guidelines and can take responsibility for the accuracy of the submitted materials.

Plans drawn by unlicensed individuals or those pulled from outdated templates are far more likely to contain errors, omissions, or violations. And in commercial renovation, these issues don’t just delay the process—they can result in thousands of dollars in fines, do-overs, and even litigation.

Common Mistakes in Floor Plans That Compromise Compliance

Incomplete Information

A frequent mistake in commercial renovation projects is submitting floor plans that lack key compliance data, including dimensions, annotations, legends, or system symbols. Every line on a commercial floor plan has legal implications, so missing elements can create ambiguity that leads to rejection or red flag reviews.

Not Accounting for Occupant Load

Many commercial regulations depend on the building’s expected occupant load. This number determines the number of exits required, the width of stairwells, the number of restrooms needed, and other factors. If your floor plan underestimates the number of people using the space, you risk being found noncompliant during inspection.

Ignoring Changes That Trigger Additional Permits

Sometimes, even seemingly minor changes—like adding a partition wall or relocating a bathroom—can require additional permits or inspections. If these changes aren’t reflected in the floor plans, they may be flagged later as unauthorized modifications. Always update your plans as the renovation progresses to ensure compliance throughout the process.

Updating Floor Plans for Ongoing Compliance

Compliance continues even after construction ends, which is why floor plans should be updated and archived whenever significant changes occur in a commercial space. These revised plans are essential for future permits, tenant improvements, emergency procedures, audits, lease renewals, and insurance reviews. Keeping accurate, current floor plans on file helps protect your business from liability and ensures you can quickly demonstrate compliance when needed.

Why Accurate Floor Plans Are the Backbone of Commercial Renovation Compliance

In commercial renovations, floor plans serve as critical legal documents that prove your project complies with building codes, fire safety rules, zoning laws, ADA standards, and environmental regulations. Relying on outdated drawings or generic templates can jeopardize permits, delay occupancy, and create costly setbacks. To mitigate these risks, it's essential to work with qualified professionals who can produce accurate and up-to-date floor plans. Working with professionals not only ensures your renovation meets design goals but also helps you navigate every regulatory requirement with confidence.

Visit our LNE Surveys blog to learn more about our surveying services for existing buildings nationwide!

How to Avoid Mistakes in Commercial Renovations Through 3D Modeling Software

Commercial renovations come with countless variables—structural unknowns, outdated plans, budget constraints, and hidden code violations. These issues can compound quickly, especially in older or heavily modified buildings. A single error can delay your timeline or derail your budget entirely. That’s why 3D modeling software transforms how professionals plan, visualize, and execute renovations. It allows teams to simulate real-world conditions, detect system clashes, and integrate live data into the project workflow. These capabilities make 3D modeling software a powerful frontline defense against costly, preventable renovation mistakes.

How 3D Modeling Software Identifies Pre-Existing Structural Issues

One of the most significant risks in commercial renovations is beginning a project without fully understanding the existing structure. Older blueprints are often inaccurate or incomplete; hidden conditions—like outdated wiring or unmarked ductwork—can quickly derail progress. 3D modeling software solves this by using LiDAR or photogrammetry to create a precise digital twin of the building. The model details structural elements and mechanical systems, helping teams spot potential issues before demolition and preventing the common mistake of designing plans that don’t align with on-site realities.

Using 3D Modeling Software to Coordinate Renovation Teams

Poor communication and misaligned trades are leading causes of renovation delays, often resulting in errors like misplaced plumbing or drilled-through supports. These mistakes stem from fragmented information and unclear visuals. 3D modeling software solves this by giving all team members access to a shared, real-time model where updates are instantly visible. This centralized platform reduces conflicts, simplifies coordination, and makes meetings more efficient. Improving clarity and collaboration helps prevent costly errors before they reach the job site.

Preventing Cost Overruns With 3D Modeling Software

Budget overruns in commercial renovations often stem from miscalculations, unforeseen issues, or the need for rework. Traditional planning methods using 2D blueprints and estimates frequently fail to capture real on-site conditions. 3D modeling software minimizes these risks by digitally simulating every aspect of the renovation before work begins. This simulation allows stakeholders to estimate materials and labor more accurately, explore design options visually, and uncover cost-saving opportunities early. As a result, bidding becomes more precise, waste is reduced, and financial surprises are minimal.

How 3D Modeling Software Supports Compliance and Permitting

Depending on the jurisdiction, local building codes, ADA requirements, and fire safety regulations often vary. 3D modeling software helps renovation teams stay compliant by embedding rule checks directly into the design process.

Integrated Code Libraries

Many modeling tools auto-update to reflect the latest regional and national building codes. This automation ensures that your plans are always aligned with current regulations. By catching noncompliance early, you avoid costly revisions down the line. These tools can even flag potential code violations as you build, helping to eliminate manual checks. This proactive approach reduces risk and improves collaboration with local authorities.

ADA Accessibility Testing

3D modeling software can simulate how individuals with disabilities interact with the space. This simulation helps ensure that legal accessibility requirements are met before construction. It also supports inclusive design from the very beginning. Designers can test wheelchair routes, reach ranges, and clearances virtually. That means adjustments are made before a single wall is built, saving both time and money.

Documentation Output

These platforms generate code-ready submission sets that meet jurisdictional standards. Fewer errors in documentation mean fewer delays during permit review, streamlining approvals and keeping the project moving forward. With standardized templates and automated formatting, submission packets are easier to compile and review. Consistency across all drawings and documents enhances credibility with inspectors and plan checkers.

Enhancing On-Site Accuracy Through 3D Modeling Software Integration

One of the most overlooked advantages of 3D modeling software is its ability to integrate seamlessly with construction hardware and mobile devices. On-site crews can use tablets or AR headsets to access the digital model, allowing them to visualize real-time updates and compare the model to actual conditions with pinpoint accuracy. This capability dramatically reduces misaligned systems, framing mistakes, or misplaced walls. It also speeds up the inspection process by enabling teams to identify and address issues immediately. Instead of waiting for revised blueprints, field crews can collaborate on solutions directly through the model.

Using 3D Modeling Software to Handle Unexpected Changes

Even the most carefully planned commercial renovations run into unexpected issues like corroded beams, hidden pipes, or mold behind walls. What sets successful teams apart is their ability to respond quickly and precisely to these surprises. With 3D modeling software, the affected area can be rescanned, and the model can be updated almost immediately. This feature allows architects and contractors to redesign around the issue, test different solutions virtually, and adjust the project schedule. As a result, delays are minimized, and costly disruptions are avoided.

Reducing Change Orders With 3D Modeling Software

Change orders are the bane of commercial renovation. They introduce uncertainty, increase costs, and frustrate clients. Many are caused by design conflicts or incomplete site understanding. By leveraging 3D modeling software from the start, most of these issues can be detected and addressed before they make it to the job site. Visual clash detection and performance simulation tools can verify whether ductwork will interfere with joists or if plumbing pathways are viable. These insights lead to a far more stable scope of work and fewer costly surprises mid-project.

How 3D Modeling Software Improves Stakeholder Engagement

In commercial renovations, success often hinges on keeping investors, tenants, and clients informed and confident. 3D modeling software provides compelling visual tools that make it easier to present progress, explore design alternatives, and secure buy-in at each phase.

Instead of relying on abstract blueprints or technical jargon, you can showcase walkthroughs, exploded views, or time-lapse simulations. These presentations build trust and make it easier to catch design oversights early when feedback is still actionable.

The Role of 3D Modeling Software in Sustainable Renovation

Sustainability is no longer optional in commercial renovation. Building efficiency is a top priority for LEED certification, ESG goals, or simply utility savings. 3D modeling software supports this by simulating energy usage, daylight access, and HVAC loads—all based on the physical and geographic characteristics of the existing building.

Before committing to construction, you can evaluate how insulation upgrades will perform, model solar panel placements, or optimize window retrofits—all digitally. This digital evaluation leads to greener, more efficient buildings without the waste of trial-and-error upgrades.

Future-Proofing Commercial Spaces With 3D Modeling Software

Renovations aren't just about fixing what's broken—they’re about preparing a space for long-term use. 3D modeling software makes it easier to plan for adaptability by allowing you to visualize flexible layouts, modular furniture plans, or future expansions.

Whether your renovation prepares for a growing tenant base or upgrades systems for future tech integration, the model becomes a living record of what exists and a blueprint for what’s possible.

Long-Term Asset Value From Digital Records

3D modeling software provides long-term value by preserving detailed digital records of a building's layout and updates. These models can integrate with facility management systems, track renovation history, and support lifecycle cost planning. This integration  ensures ongoing maintenance is streamlined and future upgrades are based on accurate, up-to-date information. It also reduces reliance on paper records or outdated floor plans, which become obsolete. With a central digital model, stakeholders can make informed decisions throughout the building’s lifespan.

Common Renovation Mistakes That 3D Modeling Software Helps You Avoid

Some of the most costly mistakes in commercial renovations stem from coordination breakdowns and inaccurate assumptions during planning. 3D modeling software addresses these risks by enhancing accuracy, communication, and regulatory alignment.

Design Conflicts and System Clashes
3D modeling software identifies layout conflicts between HVAC, plumbing, and electrical systems before construction begins. This clash detection helps teams resolve issues digitally rather than on-site, where fixes are more expensive. It also allows multiple disciplines to coordinate their work in one unified environment. You reduce rework, cost overruns, and construction delays by catching these overlaps early.

Measurement and Fitment Accuracy
Laser-scanned models provide exact, real-world dimensions of existing spaces. This accuracy ensures that all prefabricated materials, structural components, and fixtures fit correctly the first time. Reducing manual measurement errors prevents downstream problems like misaligned framing or incompatible installations. With better accuracy, teams save time and avoid costly material waste.

Faster Permitting Through Code Validation
Many 3D modeling platforms include integrated code compliance checks during the design phase. This integration allows teams to validate layouts against local building regulations before submitting them for approval. When designs are compliant, permit review times are significantly reduced. Fewer rounds of revisions also translate to faster project kickoff and less administrative overhead.

Cost Estimations and Budget Control
3D modeling software supports detailed quantity takeoffs and performance simulations to forecast costs more precisely. By modeling material usage and energy performance, teams can spot budget risks before construction starts, making planning contingencies and adjusting specifications easier to meet financial goals. Avoiding budget surprises also helps maintain trust between stakeholders and clients.

Team Alignment Through Real-Time Sharing
Cloud-based modeling platforms allow all stakeholders to view and collaborate on the same digital file in real-time. This feature ensures everyone—from architects to subcontractors—works from the most up-to-date version of the design. It minimizes errors caused by miscommunication or outdated drawings. Clear visibility across all project phases improves coordination and accelerates decision-making.

Why 3D Modeling Software is Essential for Commercial Renovations

If your renovation strategy still relies on 2D plans, disconnected teams, and field corrections, you’re leaving your project vulnerable to errors, delays, and budget overruns. 3D modeling software changes the game by bringing every detail—visible and invisible—into a unified digital environment. It enables better planning, tighter coordination, and faster problem-solving at every stage of construction. More than a design tool, it’s a risk management asset that helps commercial renovations stay on time, on budget, and with vision.

Visit our LNE Surveys blog to learn more about our professional surveying services nationwide.

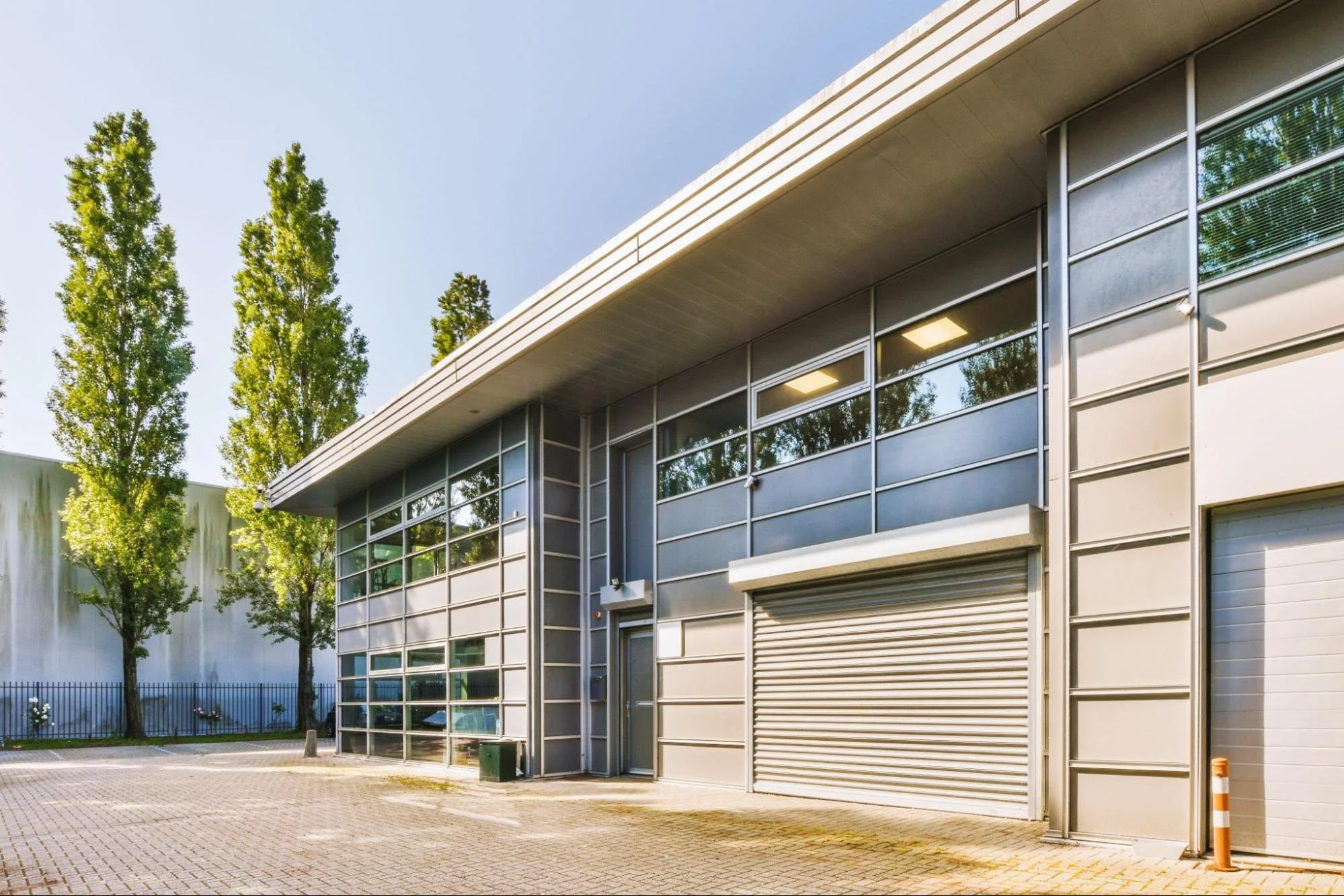

What a Survey Company Looks for in Pre-Existing Commercial Buildings

When evaluating pre-existing commercial buildings, a professional survey company does more than take measurements. These properties often have a layered history—renovations, code changes, undocumented modifications, and aging infrastructure—that can significantly impact future use. The survey process is essential for ensuring safety, planning renovations, and protecting financial investments. Below, we explore what a survey company looks for when assessing existing commercial structures—and why these details matter more than ever.

How a Survey Company Begins with Documentation and Field Surveys

Every commercial building survey starts with a documentation review and field validation. While some buildings come with blueprints or as-built drawings, these are frequently outdated or incomplete. A comprehensive survey company begins by cross-referencing existing records with the physical structure to identify gaps and inconsistencies.

Field Surveys Expose Undocumented Changes

Field surveys are critical to confirming a building’s layout. Surveyors walk through every floor and use precise instruments to measure walls, openings, and structural elements. They often uncover inconsistencies—walls added or removed, doors sealed, or mechanical systems moved without updates to official plans. These changes can impact fire safety, tenant layout, or ADA compliance, making them essential to document.

Why Surveyors Can’t Rely Solely on Plans

Architectural drawings may reflect the building’s original intent, but many commercial spaces have evolved significantly over time. Field surveys ensure owners and developers are working with reality, not assumptions, preventing expensive mistakes during renovations or transactions.

Survey Companies Use As-Built Surveys to Establish Real Dimensions

An as-built survey captures the actual dimensions and physical layout of a building as it stands today. These surveys serve as the foundation for any renovation, retrofit, or resale effort, and they are especially critical for commercial projects involving multiple stakeholders.

As-Built Surveys Correct Common Measurement Errors

Pre-existing commercial buildings frequently contain layout discrepancies—corridors that don’t align, ceiling heights that vary, or mechanical rooms that exceed code allowances. A survey company addresses these discrepancies early, enabling better planning and permitting outcomes.

Laser Scanning Elevates Survey Accuracy

Advanced survey companies use 3D laser scanning (LiDAR) to produce highly accurate digital models. These tools allow surveyors to gather millions of data points across floors, ceilings, and structural elements. The data is often used to produce CAD drawings or BIM models, making coordination between architects, engineers, and contractors seamless.

Structural Surveys Help Evaluate Building Safety

A survey company’s job goes beyond measurements—they’re also responsible for spotting signs of structural distress in aging buildings. This is especially vital in older commercial properties that have seen decades of occupancy and use.

Surveyors Identify Red Flags in Building Movement

Structural surveys detect misaligned door frames, cracked masonry, sloped flooring, or bowed supports. These signs may indicate foundational shifting, water damage, or material fatigue. Survey companies document these issues to guide repair or further engineering review.

Non-Destructive Testing Is Often Used in Structural Surveys

Survey companies use non-destructive testing (NDT) like ground-penetrating radar or infrared thermography to avoid damage during structural assessments. These tools help assess concrete integrity, voids behind walls, or moisture accumulation—without tearing the building apart.

A Survey Company Evaluates Code and Accessibility Compliance

Compliance with updated codes is one of the most overlooked but important aspects of surveying a commercial building. Surveyors examine accessibility, safety features, and zoning compatibility to ensure the building meets current regulations.

Survey Companies Check ADA Accessibility

Surveyors examine entry points, ramps, hallway widths, restrooms, and elevators to determine if they comply with Americans with Disabilities Act (ADA) standards. Older buildings frequently fall short of these requirements, and surveys help property owners plan for necessary upgrades before inspections or litigation risks arise.

Life Safety Surveys Protect Occupants

Survey companies also assess fire safety elements: Are there two means of egress from every floor? Do exit routes have proper signage? Are sprinklers and alarms in place? These details are not just technical—they can save lives in an emergency and are required for occupancy certification.

Surveying Building Geometry for Renovation or Redevelopment

When a commercial property is being renovated, repurposed, or re-leased, the survey company’s geometric data becomes a key asset. Surveyors capture everything from floorplates and ceiling heights to column spacing and façade features.

Survey Data Powers Accurate Design and Engineering

Without current, detailed geometry, architects and engineers risk planning based on guesswork. Survey companies remove that uncertainty by documenting every physical detail, making it easier to design upgrades, install new systems, or change layouts for new tenants.

Exterior and Roof Surveys Are Equally Crucial

The exterior of the building—especially the roof—receives special attention. Surveyors look for drainage issues, structural deformation, and parapet wall conditions. They also capture grade changes and exterior access points, which impact site planning and ADA upgrades.

MEP Surveys Support Modern Infrastructure Upgrades

Survey companies are also crucial in evaluating mechanical, electrical, and plumbing (MEP) systems within pre-existing commercial buildings. These components often require replacement or modernization, especially in buildings over 20 years old.

Surveyors Locate Hidden Utilities and Infrastructure

MEP surveys map out the exact location of ductwork, wiring runs, water lines, shut-off valves, and utility panels. These are often hidden behind walls or ceilings, and misidentifying them can lead to delays or accidental damage during construction.

Supporting Engineers with Accurate Survey Outputs

Engineers rely on survey data to calculate system loads, pressure drops, and electrical capacities. The survey company’s contribution ensures that planned upgrades—like HVAC modernization or adding EV charging stations—are realistic and code-compliant.

Environmental Surveys Address Health and Hazard Concerns

Environmental hazards are more likely in older commercial buildings, making environmental surveying an essential part of the broader assessment process.

Surveyors Flag Hazardous Materials

Survey companies identify warning signs of materials like asbestos, lead paint, mold, and outdated refrigerants. These issues require specialized abatement strategies, and early identification prevents unexpected budget overruns.

Surveying Past Use for Environmental Risk

If the building previously served industrial or medical purposes, surveyors assess whether legacy contaminants may exist in walls, flooring, or soil. They may recommend additional environmental testing or remediation planning, especially if the site is being converted for public use or residential occupancy.

A Survey Company Produces Digital Models for Modern Planning

Today’s survey companies deliver more than paper floor plans—they create full digital models compatible with architectural and construction software. This includes 2D CAD files, 3D BIM files, and geospatial data when applicable.

BIM and 3D Surveys Improve Long-Term Property Management

By creating a BIM model, survey companies offer a dynamic tool that property managers and facility teams can use well beyond construction. These models help with asset tracking, space planning, and predictive maintenance by embedding data about HVAC units, elevators, and emergency systems.

GIS Integration for Site-Wide Surveys

Survey data is often integrated into GIS systems for larger commercial campuses. This geospatial layer allows for advanced planning involving parking lots, underground utilities, or multi-building access coordination.

Surveying Tailored to the Building’s Future Use

Every commercial building is different—and so is the purpose of each survey. Whether the building is being bought, sold, repurposed, or renovated, the survey company tailors its deliverables accordingly.

Surveys for Due Diligence and Transactions

Before a property changes hands, surveys document boundaries, easements, and interior conditions. ALTA/NSPS land title surveys are especially common during high-value commercial transactions, protecting both buyer and lender from title issues or zoning conflicts.

Surveys for Renovation and Adaptive Reuse

When a warehouse becomes office space or a church is converted to a school, the survey scope shifts. Survey companies look for factors that impact adaptive reuse, like ceiling height minimums, egress route possibilities, and fire separation ratings.

Why Experience Matters in Commercial Building Surveys

Surveying a pre-existing commercial building isn’t just technical—it requires intuition and experience. The best survey companies know how to read between the lines of old blueprints, anticipate problem areas, and identify risks that others might miss.

Specialized Survey Teams Offer Better Results

Buildings with medical, industrial, or historic backgrounds benefit from surveyors familiar with those types of construction. These teams recognize material types, structural methods, and regulatory patterns unique to each niche, providing more accurate and insightful reporting.

Survey Companies Reduce Risk and Increase ROI

Ultimately, an experienced survey company helps clients make informed decisions. Whether that means saving money on renovation, avoiding delays during permitting, or maximizing a building’s value during resale, the return on investment is clear.

Unlocking Building Potential With a Professional Survey Company

Pre-existing commercial buildings offer tremendous value—but only when their risks and realities are fully understood. A professional survey company delivers clarity in the face of uncertainty, mapping out not just where the walls are, but what lies beneath them. From code compliance and structural integrity to laser scanning and BIM modeling, today’s survey companies empower property owners, investors, and developers to make confident, data-backed decisions. When working with older buildings, there’s no substitute for experience—and no success without a comprehensive, professional survey.
Visit our LNE Surveys blog to learn more about our surveying services nationwide.

What Is BIM?

In the modern commercial real estate industry, Building Information Modeling (BIM) has become a powerful tool for maximizing properties' functionality, safety, and profitability. At the same time, many associate BIM with new construction; its value for pre-existing commercial buildings is often even more significant. Aging facilities have hidden risks, incomplete documentation, and complex renovation demands—challenges BIM is uniquely equipped to address. By creating intelligent digital replicas of buildings and embedding them with data, stakeholders gain clarity and control over every square foot of space, regardless of the structure’s age.

How BIM Works in the Context of Existing Commercial Buildings

Using BIM for a pre-existing commercial building involves a distinct process compared to new construction. Rather than starting from scratch, professionals must first understand and digitally capture what already exists before any modeling or planning can begin.

Capturing Current Conditions

Using BIM for an existing commercial building starts with documenting the structure’s current state as accurately as possible. This is typically done through laser scanning, photogrammetry, and detailed site walkthroughs. The result is a comprehensive digital record of the existing building.

Creating the BIM Model

The captured data is imported into BIM software like Autodesk Revit to create a three-dimensional model. This model includes precise geometry that reflects the architecture and systems in place. It becomes a visual foundation for all future work.

Mapping Building Systems

Beyond basic geometry, the model identifies architectural layouts, mechanical components, plumbing networks, electrical systems, and structural elements. Each layer is organized for easy access and modification. This level of detail supports accurate renovation planning and facility upgrades.

Integrating Data and Metadata

BIM allows each building component to be linked with critical information, such as manufacturer specifications and installation dates. Maintenance schedules and service histories can also be embedded in the model. This transforms the digital model into a powerful operational tool.

Supporting Long-Term Asset Management

Commercial property managers gain a centralized hub with BIM for overseeing system performance and maintenance. It reduces reliance on paper records and fragmented digital files. Over time, it supports smarter decision-making and preserves institutional knowledge.

Why BIM is Essential for Managing Older Commercial Properties

Pre-existing commercial buildings often come with a host of legacy issues, including missing as-builts, undocumented renovations, incompatible mechanical systems, and years of deferred maintenance. BIM gives owners and property managers a clear view of how a building was originally constructed, how it currently operates, and how future upgrades might interact with existing systems. Rather than piecing together information from outdated floor plans, scattered PDFs, or staff recollection, teams can rely on a single digital model that holds accurate, real-time building data. This centralized source streamlines communication between owners, contractors, and design professionals, reducing errors, speeding up timelines, and helping to control costs. BIM is the essential link between past construction and future planning for buildings facing adaptive reuse, energy efficiency upgrades, or multi-phase renovations.

Using BIM to Streamline Renovation and Retrofit Projects

Renovating a commercial building without a clear understanding of its existing conditions can lead to costly surprises and avoidable delays. BIM eliminates much of that uncertainty by providing a detailed, data-rich digital model that accurately reflects the building’s current state. Designers and contractors can simulate proposed changes, test scenarios, and detect potential issues—such as outdated ductwork or structural vulnerabilities—before construction begins. Built-in clash detection tools make it easier to identify where mechanical, electrical, or plumbing systems may interfere with one another, helping teams avoid conflicts onsite. Whether the goal is to upgrade HVAC systems, modernize infrastructure, or ensure compliance with current codes, BIM delivers the insight and precision needed to stay on schedule and on budget.

How BIM Supports Long-Term Facility Management

BIM’s value doesn’t stop at construction—it becomes an even more powerful tool during the long-term operation of a commercial building. From maintenance planning to space optimization, a well-maintained BIM model streamlines everyday decision-making and supports more efficient facility management.

Preventative Maintenance Planning

BIM allows facility teams to schedule maintenance tasks based on accurate service timelines and equipment specifications. Historical data embedded in the model helps anticipate potential failures before they occur. This reduces unplanned downtime and extends the life of building systems.

Faster Troubleshooting and Repairs

Instead of dispatching technicians blindly, managers can consult the BIM model to pinpoint problem areas. They can view system layouts, review past repairs, and identify specific parts in need of service. This saves time, minimizes labor hours, and speeds up resolution.

Improved Space Utilization

As businesses evolve, space needs change, and BIM helps managers adapt quickly. With real-time visualization of layouts and occupancy, reconfiguring workstations or common areas becomes more efficient. This capability is especially useful for multi-tenant buildings or hybrid office models.

Streamlined Tenant Fit-Outs

When new tenants move in, BIM makes planning electrical, plumbing, and network changes easier without disrupting existing systems. It provides clear documentation of infrastructure capacity and limitations. As a result, move-ins and customizations happen faster and with fewer surprises.

Data-Driven Operational Decisions

BIM supports smarter, data-backed strategies for energy use, equipment upgrades, and asset management. Facility teams can analyze building performance over time and prioritize investments, ensuring that capital improvements align with actual operational needs.

Enhancing Regulatory Compliance Through BIM

Navigating building codes and regulatory requirements can be especially challenging in older commercial buildings, where original construction may not meet current standards. BIM simplifies this process by enabling architects and facility managers to model compliance scenarios directly within the digital environment. Elements such as fire safety systems, ADA accessibility, emergency egress routes, energy efficiency, and ventilation can all be visualized and updated in real-time. During inspections or code enforcement reviews, having a current BIM model gives property owners a clear advantage by visually representing compliance and pinpointing areas needing improvement. This streamlines interactions with regulators and promotes a more proactive, organized approach to building safety and sustainability.

How BIM Adds Value to Commercial Real Estate Portfolios

For commercial real estate investors and asset managers, BIM delivers substantial strategic value by improving transparency and reducing the complexity of property oversight. A building modeled in BIM becomes far easier to assess, operate, and maintain, thanks to its centralized, data-rich structure. When ownership changes, the BIM model can be transferred seamlessly, giving the new owner immediate access to service records, infrastructure layouts, and maintenance histories. This level of documentation positively influences property valuation, as buildings with comprehensive digital records are simpler to appraise and carry fewer unknown risks. BIM can make a property significantly more appealing to buyers and tenants alike in competitive markets where energy efficiency, resilience, and digital infrastructure matter.

The Role of BIM in Creating Digital Twins for Commercial Buildings

One of the most significant advancements in BIM is its integration with digital twin technology. A digital twin creates a continuously updated, real-time replica of a building by combining BIM with data from sensors, systems, and user activity.

• Real-time building monitoring: Digital twins allow facility managers to track performance metrics like energy usage, indoor air quality, and lighting levels in real-time. This data is visualized directly within the BIM model, offering a comprehensive view of building operations. It enables faster responses to issues and supports data-driven decision-making.


• Smarter Retrofitting of Older Buildings: Even decades-old commercial properties can benefit from digital twin integration. Adding IoT sensors to a 50-year-old office building and syncing them with a BIM model enhances visibility into system performance and occupant behavior. This approach can lead to major improvements in energy efficiency and maintenance planning.


• Support for Sustainability and Certifications: Digital twins easily benchmark sustainability goals and meet smart building standards. With continuous data flow, property teams can track performance against LEED or WELL criteria more accurately. This helps commercial buildings remain competitive in a market increasingly focused on environmental accountability.

BIM Software for Existing Commercial Buildings

Several BIM platforms have been specifically designed to address the complexities of modeling and managing pre-existing buildings. Autodesk Revit is one of the most widely adopted and is known for its powerful modeling, coordination, and data integration capabilities. Other platforms, such as Graphisoft Archicad, Bentley OpenBuildings, and Trimble’s Scan Essentials, offer strong support for converting laser scans into accurate, usable models. Commercial building teams integrate these tools with facility management software or customized dashboards to monitor performance and improve operational efficiency. As cloud-based BIM becomes more prevalent, collaboration improves across departments and locations, making it easier to manage and scale building data throughout entire property portfolios.

Future Outlook for BIM in Commercial Building Management

The future of BIM in commercial real estate is defined by growing intelligence, improved accessibility, and deeper integration with building operations. Artificial intelligence and machine learning are beginning to enhance BIM platforms by providing predictive capabilities, such as identifying potential system failures or suggesting optimized maintenance schedules. At the same time, cloud-based storage, mobile compatibility, and intuitive interfaces are making BIM more approachable for teams without technical backgrounds. As environmental regulations tighten and sustainability becomes a top priority, BIM will take on a larger role in tracking carbon emissions, benchmarking energy use, and guiding green retrofits. With governments and industry leaders advocating for digital modeling as a climate solution, BIM is evolving from a design tool into a critical asset for long-term commercial property resilience.

BIM: The Digital Backbone for Existing Commercial Buildings

So, what is BIM in the context of pre-existing commercial buildings? It’s a lifeline for aging infrastructure, a foundation for smart renovations, and a blueprint for long-term value. BIM transforms scattered documents and aging systems into coordinated digital models that support every phase of a building’s life. From improving energy efficiency and code compliance to simplifying renovations and supporting tenant satisfaction, BIM turns complexity into clarity.

BIM gives property owners and managers the tools to stay competitive in a market that rewards adaptability, efficiency, and transparency. It’s not just a modeling tool—it’s a smarter way to run a building. For pre-existing commercial spaces looking to evolve with the times, BIM isn’t just helpful. It’s essential.

Visit our LNE Surveys blog to learn more about our professional surveying services for existing commercial buildings nationwide.

Benefits of CAD Drafting for Commercial Building Surveys

In commercial real estate and construction, precision and efficiency are everything. Commercial buildings require accurate data to support informed decisions, from architectural planning to structural modifications. This is where CAD drafting—short for Computer-Aided Design—proves indispensable. While traditional hand-drawn methods still have their place in niche applications, modern commercial building surveys benefit significantly from CAD-based workflows. This blog explores the major advantages CAD drafting offers for commercial building surveys, from improved accuracy to collaborative efficiency and long-term asset management.

1. Precision and Consistency in Measurements

One of the most significant advantages of CAD drafting is its ability to deliver unmatched precision. Commercial buildings often have complex layouts, mechanical systems, and architectural details that demand exact measurements. Manual drawings are prone to errors, inconsistencies, and scaling inaccuracies. In contrast, CAD software ensures that measurements are consistent and mathematically precise—down to the millimeter. This precision is vital when dealing with space planning, HVAC system layouts, fire safety designs, and any construction or renovation efforts that rely on exact dimensions. With CAD drafting, survey data can be translated into fully scaled digital plans that eliminate guesswork and reduce the risk of miscommunication.

2. Time Efficiency and Faster Turnaround

Traditional hand drafting is labor-intensive, requiring more time to produce and revise drawings. CAD drafting streamlines this process through intuitive tools, predefined templates, and reusable block libraries. Survey data can be quickly imported and rendered into accurate technical drawings, significantly reducing turnaround times. For commercial building projects—where time is often money—CAD drafting accelerates documentation and allows architects, engineers, and contractors to make timely decisions. This improved efficiency enhances client satisfaction, allowing faster project approvals and minimizing downtime between survey completion and actionable planning.

3. Easy Revisions and Version Control

Revisions are an inevitable part of any building project. Whether it's a redesign prompted by zoning restrictions or changes in the building's purpose, updates must be made quickly and without introducing new errors. With manual drafting, even minor changes require redrawing large sections of a plan. CAD drafting allows users to make real-time updates with simple commands, dramatically reducing editing time. Additionally, CAD software supports version control and drawing history, enabling professionals to track changes, revert to previous versions, or share different drawing iterations with stakeholders. This flexibility ensures seamless collaboration across design and survey teams.

4. Comprehensive Documentation and Standardization

CAD drafting promotes consistency in documentation by allowing standardized drawing formats, layers, line weights, and annotation styles. For commercial building surveys, this ensures that all drawings follow a coherent structure—making them easier to interpret across teams, municipalities, and engineering disciplines. This standardization also ensures compliance with industry-specific guidelines, such as those outlined by BOMA (Building Owners and Managers Association) for space measurement or ADA (Americans with Disabilities Act) for accessibility. CAD-generated documents are clean, professional, and readily accepted by permitting offices and contractors alike.

5. Integration With Other Surveying Tools

Modern CAD platforms integrate seamlessly with other technologies commonly used in commercial building surveys. Point clouds from laser scanning (LiDAR), drone-captured imagery, and photogrammetry data can all be imported into CAD programs to produce highly accurate as-built drawings. This integration is especially beneficial in large-scale commercial surveys, where gathering field data from multiple systems and sources is routine. Rather than translating data manually, CAD enables direct overlay and modeling—helping surveyors ensure alignment between real-world conditions and digital plans with minimal friction.

6. Enhanced Visualization and Analysis

While CAD drafting may not offer the immersive 3D visualization of BIM, it still supports powerful 2D and 3D drafting capabilities that aid in analyzing space usage, structural configurations, and design implications. Through layering, color-coding, and elevation modeling, CAD drawings help visualize complex building systems in a digestible format. Commercial clients often need to understand how spaces will function—especially in high-traffic environments like shopping centers, office buildings, or warehouses. CAD drawings can be used to simulate circulation patterns, fire escape routes, lighting layouts, and other critical building dynamics that traditional sketches or narrative reports fail to illustrate clearly.

7. Cost Savings Over Time

Accurate CAD drafting reduces costly errors caused by dimensional discrepancies, missed components, or unclear drawings. These errors can result in change orders, construction delays, or failed inspections—each with financial implications. Commercial property owners and developers can avoid rework and stay within budget by investing in professional CAD drafting services. Furthermore, CAD files can be reused and updated for future renovations or expansions, providing a long-term digital asset. Over the lifecycle of a commercial property, the ability to reference and revise existing CAD files becomes a cost-saving advantage that grows over time.

8. Supports Facilities Management and Maintenance

Once a commercial building is occupied, accurate CAD drawings are a tremendous asset for facilities management. These plans are a reliable reference for locating utilities, mechanical equipment, electrical panels, and plumbing systems. Maintenance teams can use CAD layouts to plan service routes, upgrades, and safety inspections efficiently. In buildings with complex mechanical, electrical, and plumbing (MEP) systems, CAD-based documentation ensures that no vital detail is overlooked—whether it's an emergency shutoff valve or a rooftop HVAC unit. When changes occur, updated CAD files can be issued immediately, ensuring the building's operational data remains current.

9. Scalability for Large-Scale Projects

Commercial buildings vary widely in size—from compact retail outlets to multi-story office complexes or sprawling manufacturing campuses. CAD drafting scales with the size and complexity of any structure. Whether documenting a single floor or an entire facility with multiple zones, CAD can handle high-density data while maintaining speed and accuracy. CAD allows modular planning and batch processing for projects involving various buildings or interconnected structures. It is ideal for architects and surveyors working on campus developments, hospitals, logistics centers, or municipal buildings.

10. Better Communication Across Disciplines

Effective communication between architects, engineers, surveyors, and contractors is essential in any commercial building project. CAD files act as a universal language, removing ambiguity from drawings and enabling each discipline to access the information most relevant to their scope. Electrical engineers can isolate electrical layers, while structural teams can analyze load-bearing walls and foundations. This selective access and clarity allow teams to collaborate without sifting through extraneous data, improving project outcomes and reducing conflicts.

11. Compliance With Regulatory Requirements

Commercial building projects are subject to strict regulatory oversight. Permits, inspections, and zoning approvals often hinge on the quality and clarity of submitted documents. CAD drafting helps ensure compliance by providing well-organized, legible plans that conform to building codes, fire regulations, and accessibility mandates. Regulatory authorities often require digital files for easier storage and review. CAD drafting simplifies submittals by offering output in multiple formats (DWG, DXF, PDF), making meeting documentation standards for any jurisdiction or project phase easier.

12. Long-Term Asset for Property Management

Beyond construction and renovation, CAD drawings remain a valuable asset in the long-term stewardship of commercial properties. Property managers can use them to assess lease spaces, create marketing plans, or coordinate internal moves. Accurate floor plans assist with tenant fit-outs, building valuation, and emergency planning. Whether documenting a new tenant's leasehold improvements or planning an energy-efficient retrofit, CAD files serve as a living record of the building's spatial and structural framework. This ongoing utility makes CAD drafting a wise investment for commercial property owners.

13. Improved Data Backup and File Portability

Unlike paper blueprints, CAD files are easily backed up, stored in the cloud, and shared across platforms. Backing up this data in the cloud protects commercial building data from physical loss or degradation. Digital storage also allows easy portability, enabling remote access by teams located across different regions or time zones. Many CAD platforms also support data encryption and version control, further ensuring that building data remains secure and current. For property owners, this digital resilience adds another layer of protection to their building documentation portfolio.

14. Customization and Specialized Applications

CAD drafting is highly customizable. Whether your commercial project involves interior remodeling, structural retrofitting, accessibility improvements, or mechanical overhauls, CAD can be tailored to meet your specific needs. Custom layers, symbols, and workflows ensure that every drawing matches the unique requirements of the survey and the building. This adaptability is particularly important in specialized facilities such as hospitals, research laboratories, or data centers, where strict layout and compliance standards must be met. CAD drafting supports the complexity of these environments with robust tools for detailed planning.

15. Foundation for Future BIM Integration

While CAD and BIM (Building Information Modeling) are distinct, CAD drafting is crucial for future BIM adoption. Many BIM models begin with accurate CAD files as their base, particularly in retrofit or renovation projects. Having well-maintained CAD documentation ensures a smoother transition to 3D modeling when the time comes. For commercial properties seeking to upgrade their digital infrastructure, leveraging existing CAD files can streamline the BIM process, reduce rework, and lower implementation costs. In this way, CAD becomes a bridge between traditional and cutting-edge digital workflows.

Why CAD Drafting Is Essential for Today's Commercial Surveys

In today's fast-paced construction and real estate sectors, commercial building surveys must deliver more than just raw measurements—they must support fast decision-making, risk mitigation, and lifecycle planning. CAD drafting provides the accuracy, clarity, and adaptability that commercial projects demand. Whether you're surveying an office tower, renovating a warehouse, or planning a mixed-use development, CAD ensures that every line drawn is a line closer to success.

Want to learn more about modern survey tools and drafting strategies? Explore expert insights on the LNE Surveys blog—your guide to smarter building documentation.
